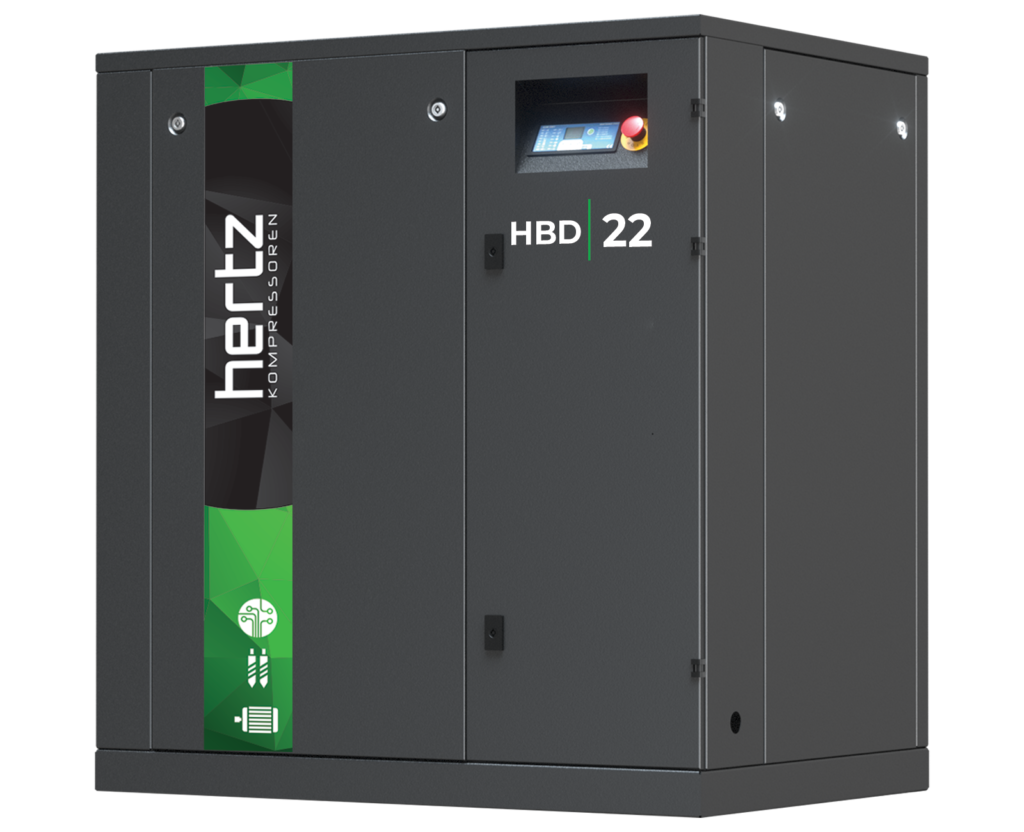

Hertz HBD Series Rotary Screw Air Compressor
Oil-injected, belt-driven compressor from 5.5 to 50 HP with TEFC IP55 motor and air cooling
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hertz HBD Series rotary screw air compressor is available from 5.5 to 50 HP in a small footprint design. The HBD Series features a belt-pulley drive system, microprocessor controller, patented and durable screw block to provide high capacity air, and an air and oil separator. The cooling system includes a quiet and efficient axial fan that connects directly to the main motor, with an additional axial fan with temperature control for 20 to 50 HP models. The HBD Series 5.5 HP model utilizes a DOL starter, while all other models have a Wye-Delta motor starting system.
Overview and Features
Features
- 5.5 to 50 HP
- 19 to 220 CFM capacity
- 100, 125, 150, and 175 PSI pressure rating (depending on selected CFM)
- Voltage
- 230-460/3/60
- 230/1/60
- UL certified electrical component cabinet
- ASME compliant tanks
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount, 120 gallon tank mount |
|---|---|
| Dryer | None, Integrated air dryer |
| Horsepower | 5.5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP, 40 HP, 50 HP |
| Capacity | 19 CFM, 28 CFM, 39 CFM, 63 CFM, 75 CFM, 87 CFM, 106 CFM, 128 CFM, 171 CFM, 220 CFM, 20 CFM, 29 CFM, 44 CFM, 68 CFM, 81 CFM, 97 CFM, 119 CFM, 140 CFM, 195 CFM, 243 CFM, 17 CFM, 25 CFM, 34 CFM, 55 CFM, 70 CFM, 77 CFM, 94 CFM, 113 CFM, 156 CFM, 201 CFM, 15 CFM, 23 CFM, 51 CFM, 66 CFM, 71 CFM, 88 CFM, 107 CFM, 141 CFM, 180 CFM |
| Pressure | 100 PSI, 125 PSI, 150 PSI, 175 PSI |
| Voltage | 230-460/3/60, 230/1/60 |
| Startup | Startup Included |
