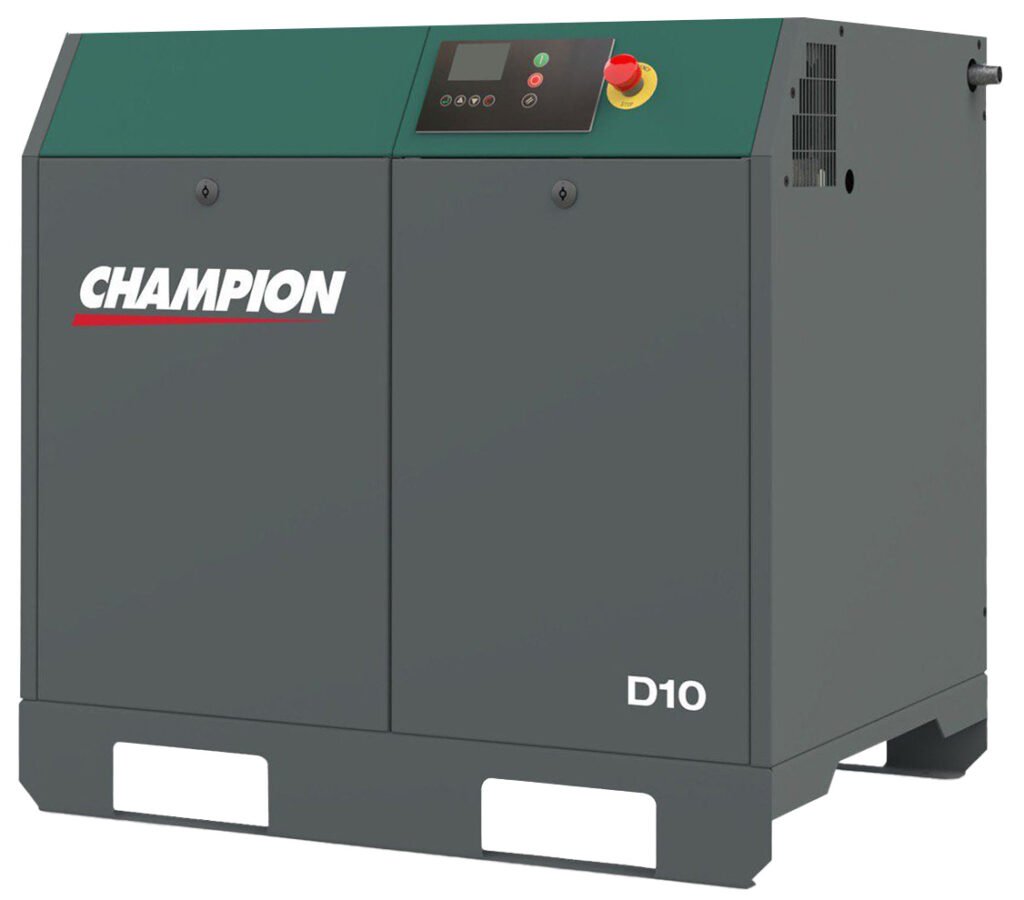

Champion D-Series Rotary Screw Air Compressor
5 to 175 HP compressor with integrated airend design to reduce the number of connection points
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion D-Series rotary screw air compressor offers a line of fixed speed, compact, and heavy-duty rotary screw air compressors that are ideal for 100% duty cycle applications where the constant compressed air demand is required.
The D-Series features an integrated airend design that reduces the number of connection points, enhances reliability, and eases serviceability. This reduced component approach extends beyond the airend into the oil and air cooler. The combination cooler design results in a reduction in energy consumption, low discharge air temperatures, and an increase in the reliability of the system.
Overview and Features
Features
- Drive options available
- Belt drive (5 to 15 HP)
- Gear driven (40 and 50 HP)
- Direct drive (75 to 175 HP)
- Optional air system solution (10 and 15 HP)
- 60, 80, or 120 gallon receiver air tank
- Refrigerated air dryer
- 1 micron pre-filter
- Pressure gauge
- Tank drain
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount, Tank mount |
|---|---|
| Dryer | None, Refrigerated air dryer included |
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP, 40 HP, 50 HP, 75 HP, 100 HP, 125 HP, 150 HP, 175 HP |
| Capacity | 17.9 CFM at 145 PSIG, 23.4 CFM at 145 PSIG, 32 CFM at 145 PSIG, 47 CFM at 145 PSIG, 75.5 CFM at 125 PSIG, 97.3 CFM at 125 PSIG, 111.8 CFM at 125 PSIG, 138.5 CFM at 125 PSIG, 167 CFM at 145 PSIG, 329 CFM at 125 PSIG, 448 CFM at 120 PSIG, 511.8 CFM at 125 PSIG, 661.9 CFM at 125 PSIG, 759.3 CFM at 125 PSIG |
| Tank Size | None, 80 gallon, 120 gallon, 240 gallon |
| Voltage | 200-230/460/3/60 (Tri-Volt), 230/3/60, 460/3/60, 575/3/60, 200/1/60, 230/1/60 |
