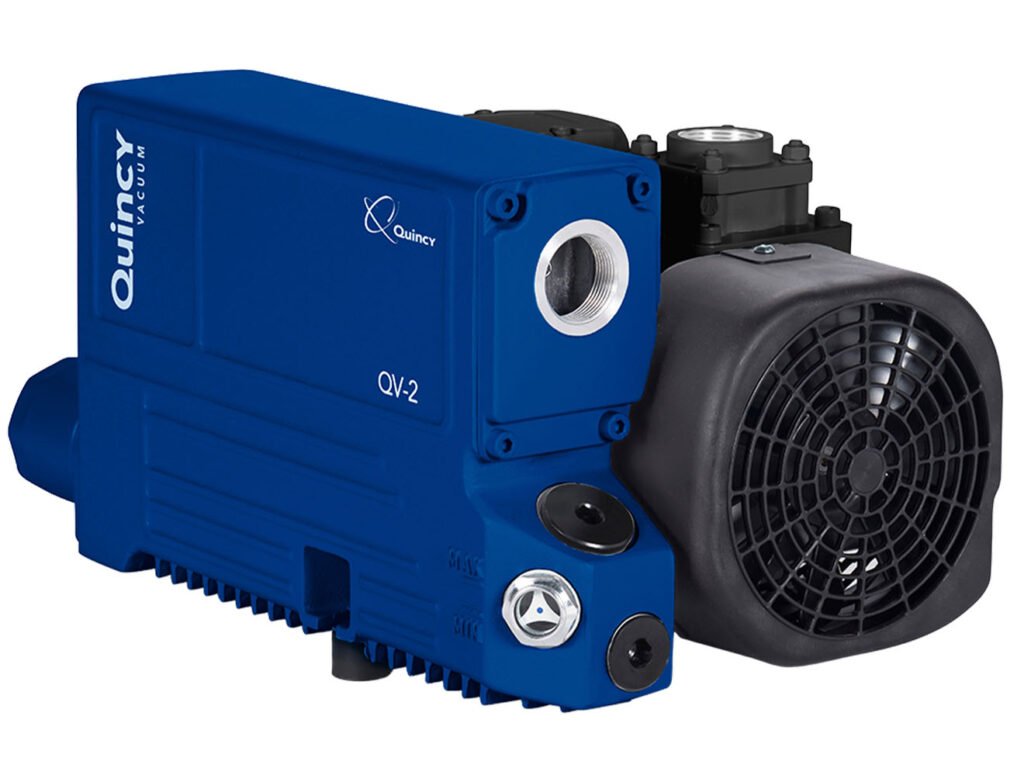

Quincy QV Series Rotary Vane Vacuum Pump
29.9“HgV ultimate vacuum, 1.2 to 8.8 HP, 17.1 to 200 CFM, 1 year warranty
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Quincy QV Series Rotary Vane Vacuum Pump features six oil flooded pumps ranging from 1.2 to 8.8 HP. The QV pump is self-contained, including inlet non-return valve, pumping chamber, oil mist separation, and an oil cooling/recirculating system. Optimized for flowrate performance, oil separation and temperature stability, the QV Series can operate continuously at any vacuum level.
Applications:
- Low Flowrate, point-of-use applications
- Air (or littler water vapor) process gases
- Facilities looking for simple DIY maintenance
- Food processing
- Food Packaging/Preservation
- Degassing/Drying
- Vacuum Load Locks/Fixtures
- Pick and Place
Overview and Features
Features
- 29.9“HgV ultimate vacuum
- 1.2 to 8.8 HP
- 17.1 to 200 CFM
- 1800 RPM nominal pump speed
- Cast-iron, precision-machined rotor with non-metallic vanes
- Air cooled
- Heavy-duty flange-mounted motor
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 18 ACFM, 31.2 ACFM, 42 ACFM, 68.9 ACFM, 140 ACFM, 200 ACFM |
|---|---|
| Horsepower | 1.2 HP, 1.7 HP, 2.4 HP, 4.8 HP, 7.4 HP, 8.8 HP |
| Voltage | 230-460/3/60, 230/1/60, 200-230-460/3/60, 575/3/60 |
| Starter | None, 200/3/60, 230/3/60, 460/3/60, 575/3/60, 230/1/60 |
| Additional Options | Standard Factory Inlet Filter, Inlet Check Valve, QV Vacuum Gauge |
