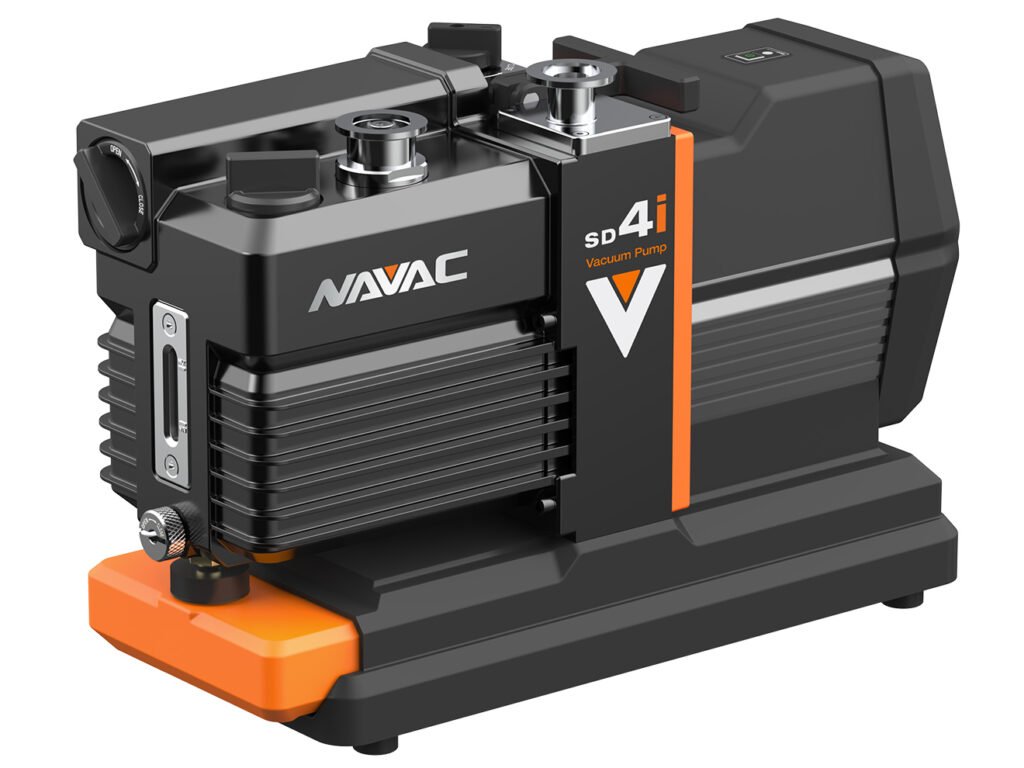

NAVAC SDi Series Oil-Sealed Rotary Vane Vacuum Pump
1.5 to 9.4 CFM, magnetic coupled bearings, integrated oil mist filter, detachable oil reservoir, eco mode, and proprietary coating
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The NAVAC SDi Series Oil-Sealed Rotary Vane Vacuum Pump is a dual stage pump engineered for reliability, zero leakage, and easy maintenance. Designed with corrosion-resistant core components, the SDi Series performs flawlessly even in harsh chemical environments, high humidity, and corrosive gas applications. Its magnetic drive and mechanical shielding technology create a fully hermetic seal that eliminates oil leakage issues common in traditional dynamic seal pumps.
Overview and Features
Features
- 1.5 to 9.4 CFM
- Variable-frequency motor equipped
- Ultimate pressure:
- 1.5×103 Torr without Gas Ballast
- 2.2×10-2 Torr with Gas Ballast
- KF25 inlet/outlet
- Magnetic coupled bearings
- Adjustable gas ballast
- Quick-change oil mist filter
- Detachable oil reservoir
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Pumping Speed | 1.5 CFM, 4.7 CFM, 7.1 CFM, 9.4 CFM |
|---|---|
| Voltage | 110/1/60, 200-240/1/50/60 |
