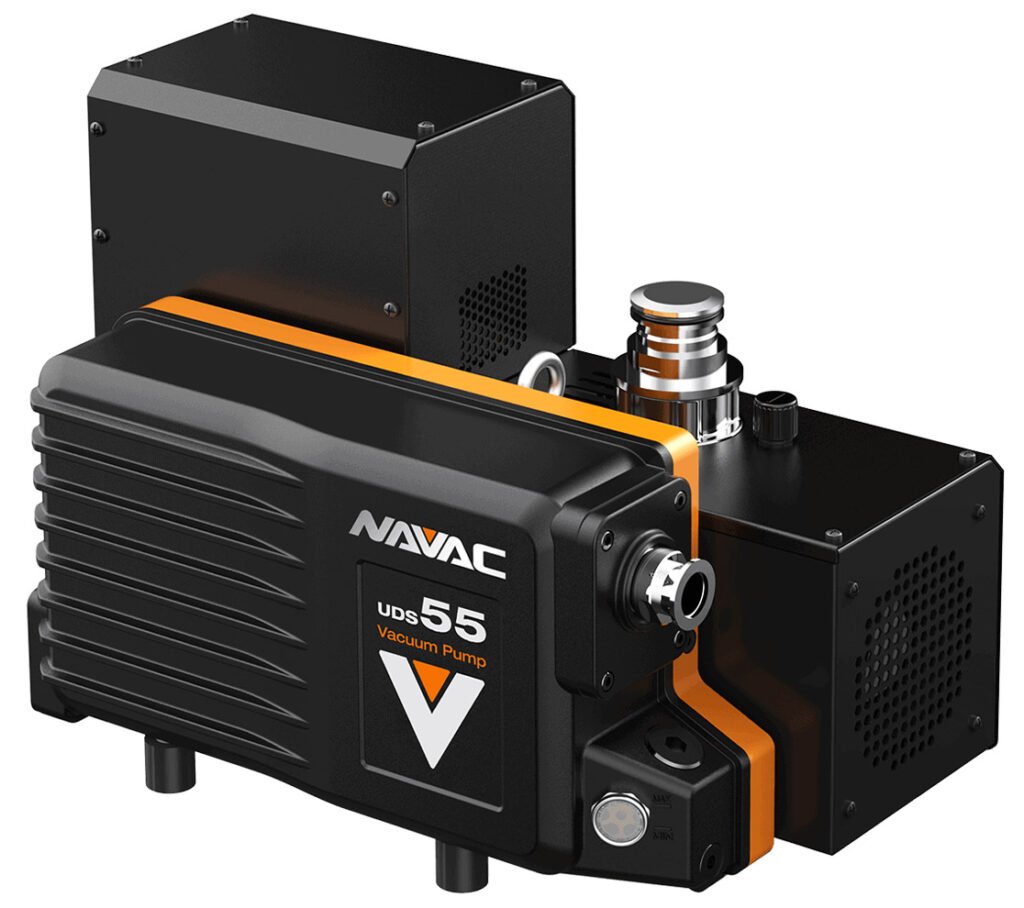

NAVAC UniDrive LC-MS Series Oil-Sealed Rotary Vane Vacuum Pump
Single-stage, oil-sealed vacuum pump optimized for liquid chromatography-mass spectrometry applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The NAVAC UniDrive LC-MS Series Oil-Sealed Rotary Vane Vacuum Pump is a single-stage pump optimized for liquid chromatography-mass spectrometry. The UniDrive LC-MS offers a compact design as well as noise reduction, making it optimal for laboratory environments. The included high-efficiency oil mist filters prevent oil vapor from exhausting into the equipment space and smoking while also prolonging the service life. The adjustable gas ballast allows for the different requirements of condensable gas to be exhausted.
Overview and Features
Features
- Pumping Speed:
- 30 or 41 CFM
- 0.11 Torr ultimate pressure
- Adjustable gas ballast
- High-efficiency oil mist filter
- KF40/KF25 flange inlet/outlet connections
- IP20 protection rated
- 220/1/60 voltage
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Pumping Speed | 30 CFM, 41 CFM |
|---|
