Quincy Compressor

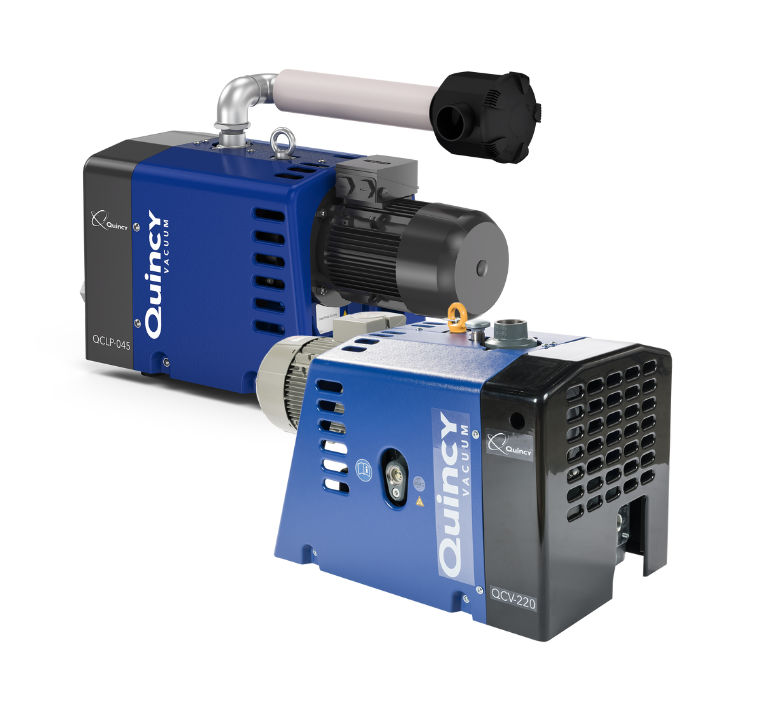

Quincy QCV Dry Claw Oilfree Vacuum Pump
Oilless Dry Claw Vacuum Pump, 46 - 208 CFM, 3 - 10 HP
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
Quincy Compressor’s QCV – Dry Claw technology features an innovative design which creates a new benchmark in the claw pump market. The simplicity, robustness, efficiency and contaminant handling capability of these pumps make them the smart choice for your application. Built to the exacting standards and quality demanded by our customers, the new dry claw pump provides you with a trouble-free and cost-effective solution to meet your needs.
Overview and Features
Features
- 46 – 208 CFM
- 3 – 10 HP
- 25.8 – 28.4 “HgV
- Corrosion Resistant Claws
- Dry (oil-free) pumping chamber
- Market leading low noise level
- Efficient IE3 motor with variable speed option for complete controllability
- Simple maintenance with contact-free internals eliminating wear
- Cool running and simple air cooling
- Compact design with a small footprint
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 46 CFM, 110 CFM, 208 CFM, 323 CFM, 606 CFM |
|---|---|
| Horsepower | 3 HP, 5 HP, 10 HP, 15 HP, 20 HP |
| Max Vacuum Level ("HgV) | 28.4 "HgV, 25.8 "HgV, 24 "HgV |
