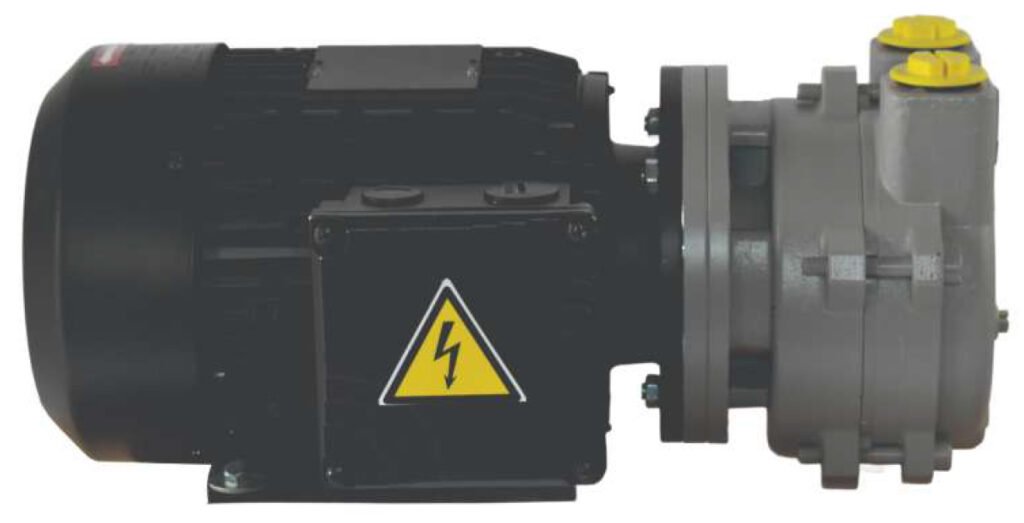

DVP FLA Series Liquid Ring Vacuum Pump
24.75 Torr/.97 inHg total final pressure, 18.25 to 529.72 CFM, 2 to 40 HP motors
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The DVP FLA Series Liquid Ring Vacuum Pump is a simple, compact, and reliable liquid ring pump design that is capable enough to handle almost any gas mixture, including vapors in vacuum or over pressure. The FLA’s operating principle combined to its accurate design allow for severe duty with high tolerance of liquid carry over. The wide range of suction pressure (down to 24.75 Torr/.97 inHg) makes the FLA series versatile and suitable for many industrial applications. The stainless steel port plate and impeller are designed and manufactured with accurate process to reach outstanding and steady performance. The low operating speed associated with the robust and simplified construction grant a long service life with minimal maintenance.
Applications:
- Vacuum industrial processing
- Sterilization, Extrusion
- Degassing
- Evaporation and Distillation
- Priming
- Vacuum sewage
- Bottling
- Depoultry
- Fish Farming
Overview and Features
Features
- 18.25 to 529.72 CFM
- 2 to 40 HP motors
- 24.75 Torr/.97 inHg total final pressure
- 212°F max gas temperature
- 480/3/60 voltage
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 2 HP, 3 HP, 5 HP, 7 HP, 10 HP, 15 HP, 25 HP, 40 HP |
|---|---|
| Capacity | 18.25 CFM, 31.19 CFM, 52.97 CFM, 71.81 CFM, 110.65 CFM, 176.57 CFM, 376.69 CFM, 529.72 CFM |
