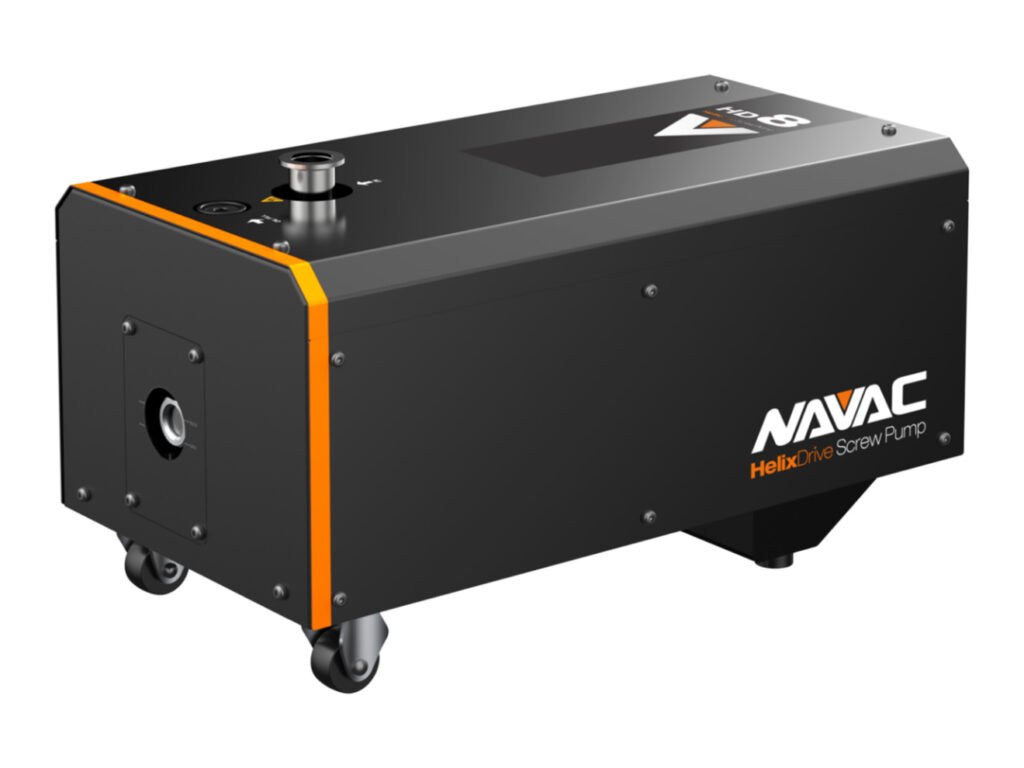

NAVAC HelixDrive Series Oil-Free Dry Screw Vacuum Pump
Compact coaxial design pump with an integrated motor ideal for harsh application where oil is not tolerated
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The NAVAC HelixDrive Series Oil-Free Dry Screw Vacuum Pump is an ultra-compact coaxial design pump with an integrated motor. The HelixDrive proprietary coating protects the pump from the most demanding industrial applications, making it ideal for harsh applications where oil is not tolerated.
Overview and Features
Features
- 4.7 to 47 CFM pumping speeds
- Ultimate Pressure:
- HD8/HD20/HD40/HD60: 7.5×10-4 Torr
- HD80: 2.2×10-2 Torr
- Gas Purge Dry Nitrogen/Dry Compressed Air:
- HD20/HD40/HD60: 0~100
- HD80: : 0~180
- Cooling:
- HD8 to HD 60: Air cooled
- HD80: Water cooled
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Pumping Speed | 4.7 CFM, 12 CFM, 19 CFM, 30 CFM, 47 CFM |
|---|---|
| Voltage | 115/1/60, 220/1/60, 200-230/3/60 |
| Connection Size | KF25 flange inlet / KF16 flange outlet, KF25 flange inlet / outlet, KF40 flange inlet / outlet, KF40 flange inlet / KF25 flange outlet |
