OZEN Air Technology

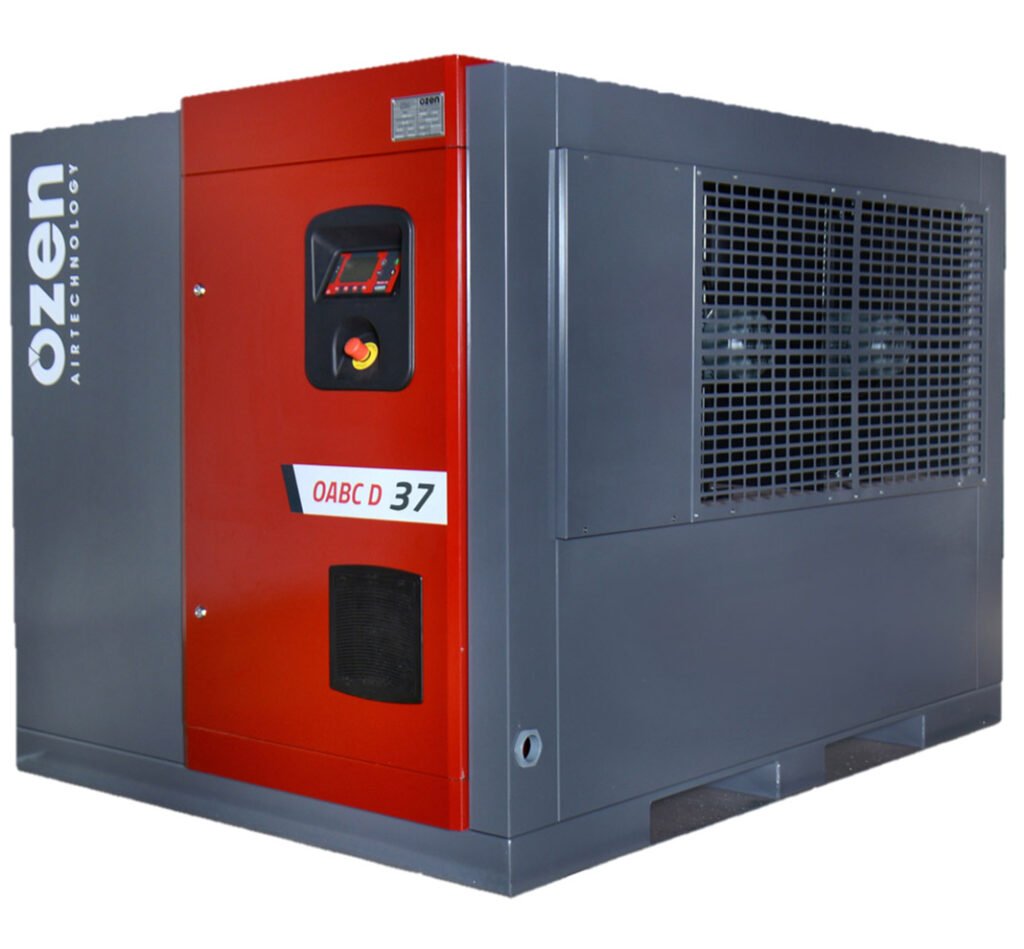

OZEN OABC D Direct Drive Rotary Screw Booster
Medium pressure (580 PSI) booster, variable speed, direct drive, 25 to 55 HP
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The OZEN OABC D Direct Drive Rotary Screw Booster is a medium-pressure (360 to 580 PSI discharge) booster designed to increase the output of your rotary screw compressor system. The 1:1 coupling direct drive system provides motor power transmission to the screw block, improving motor efficiency and reducing friction. All the functions of the OABC D series screw boosters are monitored by 21 sensors and any potential problem is prevented by the electronic control system.
Applications:
- Plastics/Food Industry – PET blow molding
- Marine – Initial motor start
- Metalworking Industry – Laser cutting
- Wood and Glass Industry – Surface coating
- Drilling – Deep well drilling
- Power Plants
- Chemical Treatment Facilities – High pressure oxygen supply
- Mines – Removal of toxic gasses
Overview and Features
Features
- 25 to 55 HP NEMA TEFC Premium Efficient Motor
- 360 to 580 PSI discharge pressure
- 1:1 coupling direct drive system
- Symmetrical Cooling System
- Maestro controller
- 8000 hour service time
- 100% duty cycle
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 25 HP, 30 HP, 37 HP, 45 HP, 55 HP |
|---|---|
| Capacity (Discharge, 360 to 580 PSI) | 91.1 to 188 CFM, 120.7 to 229.9 CFM, 189.8 to 285.7 CFM, 249 to 285.7 CFM, 268.7 to 285.7 CFM |
| Voltage | 460/3/60 |
