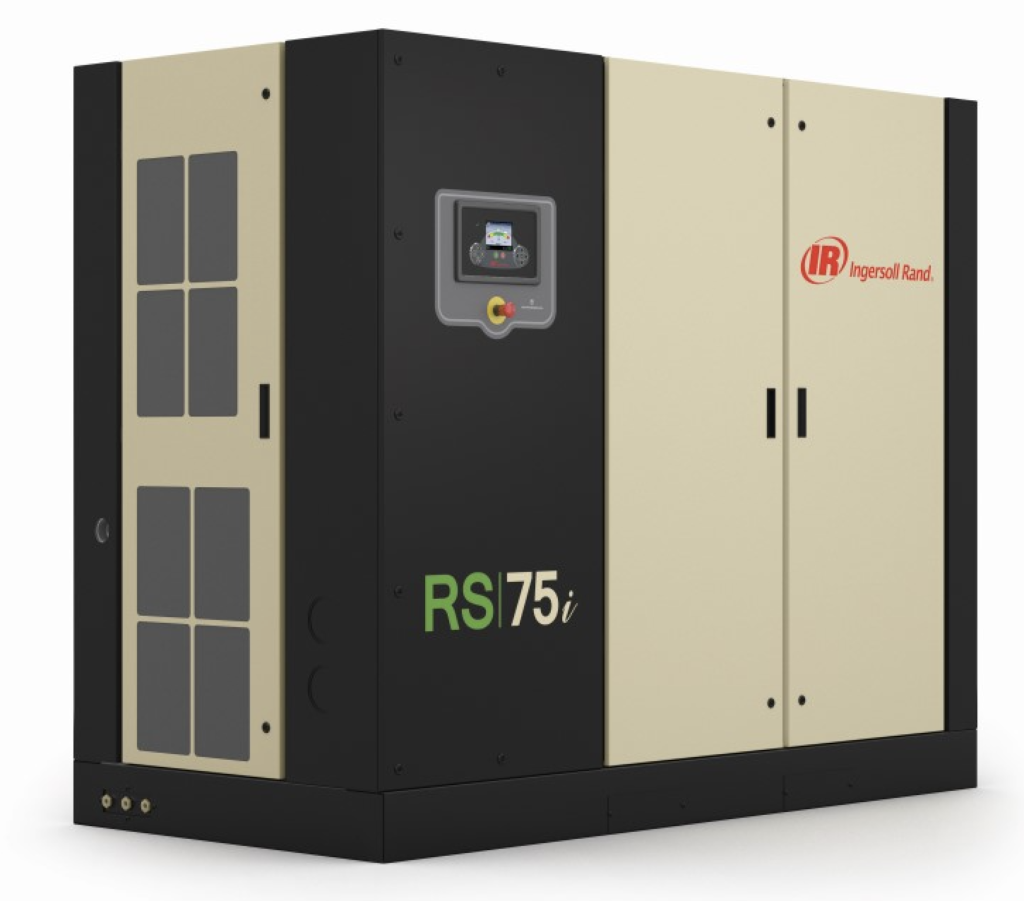

Ingersoll Rand RS-Series Fixed Speed Rotary Screw Air Compressor
40 to 100 hp configurations, air-cooled compressor, integrated air dryer option available
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Ingersoll Rand RS-Series rotary screw air compressor utilizes a reliable airend for efficient airflow and features a IE3/NEMA premium TEFC motor that delivers significant energy and cost savings. The RS-Series also features V-Shield Technology, utilizing PTFE stainless steel braided oil hoses and o-ring face seals that combine to provide a leak-free design. The premium efficiency models offer the ability to deliver up to 17.5% improved efficiency and 18% more airflow capacity from the airend.
The Xe-series controllers are standard on the RS-Series, delivering increased control functionality through an intuitive user interface, as well as remote access with many current web browser. Other Xe controllers are available as an upgrade to provide additional functionality and control.
The optional integrated dryer and 3-in-1 heat exchanger can provide clean, dry air in a single package that minimizes installation costs, reduces footprint, and improves ISO air quality.
Overview and Features
Features
- 132 to 518 CFM capacities (depending on model selection)
- IE3/NEMA Premium TEFC motor
- Wye-Delta reduced voltage starter
- Air-cooled, free-floating cooling system
- Xe-Series controller with upgradable options available
- PAC protection
- Noise attenuation enclosure with removable doors
- Power outage restart option available (requires Xe-70M controller or higher)
- NEMA/IP55 enclosure
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount |
|---|---|
| Dryer | None, Integrated air dryer (TAS) |
| Efficiency | Standard (i-series), Premium (ie-series) |
| Horsepower | 40 HP, 50 HP, 60 HP, 75 HP, 100 HP |
| Capacity | 196 CFM @ 110 PSI, 184 CFM @ 125 PSI, 168 CFM @ 145 PSI, 132 CFM @ 200 PSI, 202 CFM @ 110 PSI, 190 CFM @ 125 PSI, 173 CFM @ 145 PSI, 134 CFM @ 200 PSI, 231 CFM @ 110 PSI, 220 CFM @ 125 PSI, 197 CFM @ 145 PSI, 162 CFM @ 200 PSI, 250 CFM @ 110 PSI, 245 CFM @ 125 PSI, 222 CFM @ 145 PSI, 169 CFM @ 200 PSI, 321 CFM @ 100 PSI, 298 CFM @ 115 PSI, 267 CFM @ 135 PSI, 210 CFM @ 190 PSI, 387 CFM @ 100 PSI, 360 CFM @ 115 PSI, 335 CFM @ 135 PSI, 266 CFM @ 190 PSI, 518 CFM @ 100 PSI, 499 CFM @ 115 PSI, 465 CFM @ 135 PSI, 384 CFM @ 190 PSI |
| Pressure | 100 PSI, 115 PSI, 135 PSI, 190 PSI, 110 PSI, 125 PSI, 145 PSI, 200 PSI, 103 PSI, 118 PSI, 138 PSI, 193 PSI |
| Voltage | 200/3/60, 208/3/60, 230/3/60, 460/3/60, 575/3/60 |
| Controller | Xe-70M (Standard), Xe-90M (Standard), Xe-70M ECO Module, Xe-145M, XS-180M (Standard) |
| Power Outage Restart | None, Power Outage Restart (PORO) |
