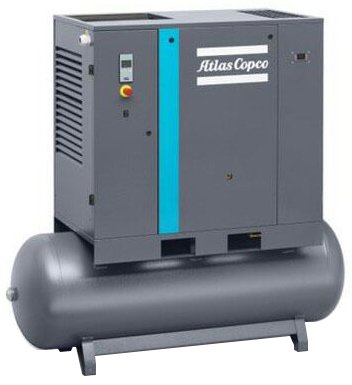

Atlas Copco G2-7 Series Oil-Injected Rotary Screw Air Compressor
3 to 10 hp, tankmount and basemount configurations with and without air dryers.
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Atlas Copco G2-7 Oil Injected Rotary Screw Compressor is designed and constructed for continuous use with no cool-down periods, in temperatures up to 114°F. Noise levels as low as 65 dB(A) allow for installation close to the point of use. No additional sound insulation or separate compressor room is required. An optional integrated air dryer can ensure dry, quality air without taking up extra space.
An Elektronikon Base controller allows for remote control and monitoring, along with real-time service alerts via computer or mobile device.
Overview and Features
Features
- 116 and 145 PSI maximum pressure options
- 1 or 3 phase receiver
- 9.7 to 36 CFM
- 3 to 10 HP
- <5ppm oil carryover
- 53 gallon air tank for tank mount options
- Integrated air dryer options available
- IE3 premium-efficiency motor
- Includes Elektronikon Base controller
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 3 HP, 5.5 HP, 7.5 HP, 10 HP |
|---|---|
| Capacity | 9.7 CFM, 13.1 CFM, 18 CFM, 20.1 CFM, 26.1 CFM, 29.2 CFM, 34.1 CFM, 36 CFM |
| Pressure | 116 PSI, 145 PSI |
| Configuration | Base mount, Tank mount, 53 gallon |
| Dryer | Not included, Included, Included (Tank Mounted Version) |
| Voltage | 208-230/460/3/60, 230/1/60 |
