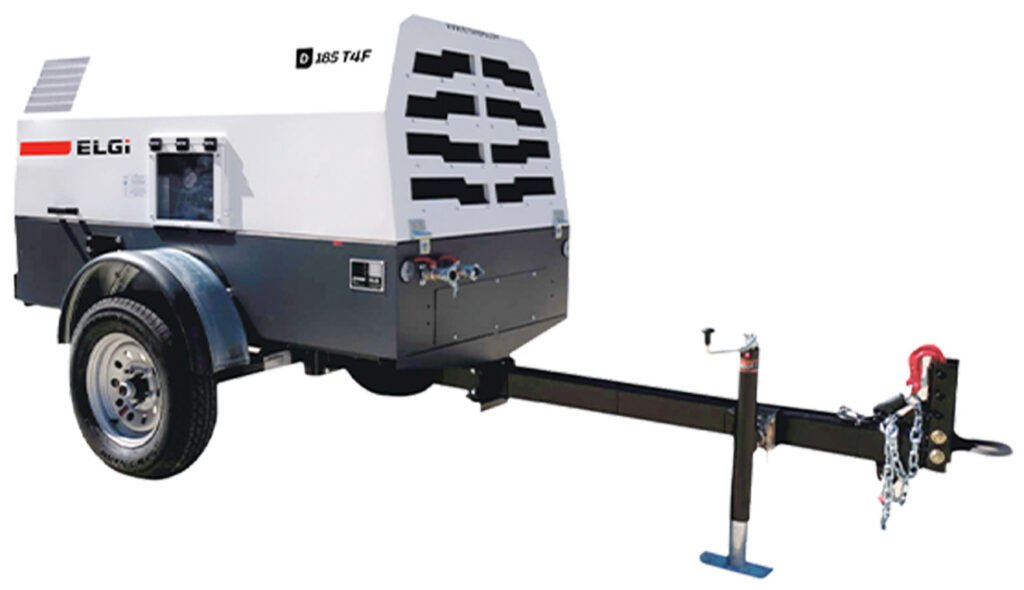

ELGi D185T4F Portable Diesel Driven Rotary Screw Air Compressor
49 HP air compressor produces 185 CFM at 100psi, available mounted on wheels or skid mounted for truck bed installation
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The ELGi D185T4F diesel powered rotary screw air compressor (previously made by Rotair) features a Kohler D1105-E3B diesel engine that provides reliable, smooth and efficient power to the compressor and can produce 185 CFM at 100psi. The low-speed airend (max 2600 rpm) reduces heat and rotor/bearing failures. The curbside mounted control panel and adjacent air valves provide ease of operation and maximize operator safety.
The D185T4F has additional options to meet you application needs. This includes a cold weather kit (block heater and HD battery), 2″ ball hitch, dual pressure switch, skid mounting for truck bed installation, a hose reel kit with 50ft of hose, and either 50 or 500 hour service kits.
Overview and Features
Features
- Kohler D1105-E3B 49 HP diesel engine
- 3 cylinders
- 2600 RPM max engine speed
- 4-stroke system, inline direct injection
- 1903 cc displacement
- Turbo intercooler aspiration
- 23 gallon fuel tank
- Additional options:
- Drawbar mounted aftercooler
- Cold weather kit
- Dual pressure switch
- Ball hitch
- Hose reel kit
- Skid mount
- Service kits (50 or 500 hour)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 49 HP |
|---|---|
| Capacity | 185 CFM |
| Pressure | 100psi |
| Aftercooler | None, Add drawbar mounted aftercooler |
| Cold Weather Kit | None, Add cold weather kit (block heater and HD battery) |
| Dual Pressure Switch | None, Add dual pressure switch (185 CFM/100psi and 150 CFM/150psi) |
| Skid Option | Standard with wheels, Skid mount |
| Hitch | Standard pintle, 2" ball, None |
| Hose Reel Kit | None, Add hose reel kit (two reels, drawbar mount, 50ft of hose per reel) |
