ELGi D90KA Portable Diesel Driven Rotary Screw Air Compressor
25 HP air compressor produces 90 CFM at 100psi, available mounted on wheels or skid mounted for truck bed installation
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

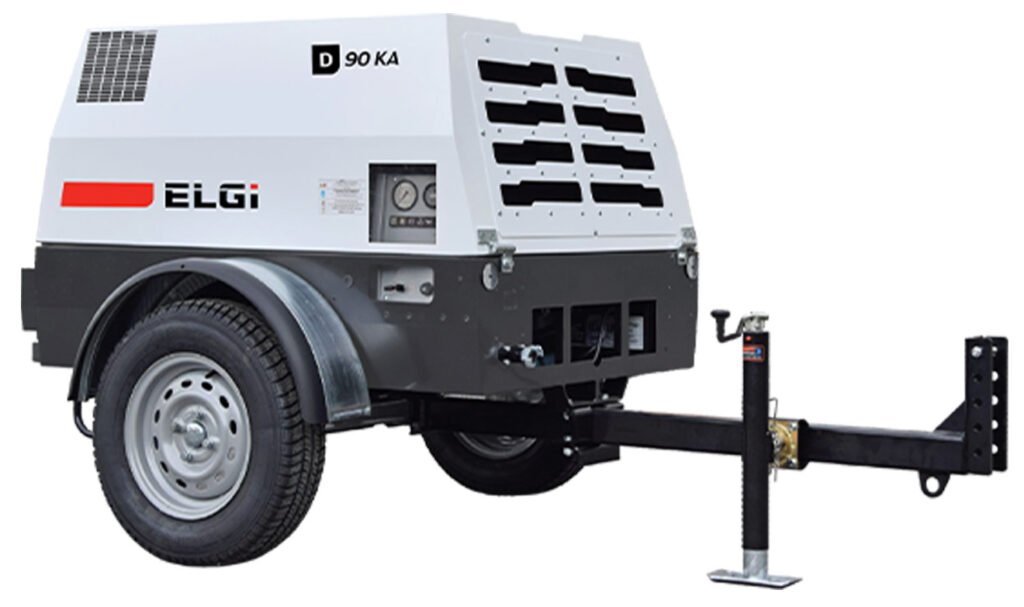

The ELGi D90KA diesel powered rotary screw air compressor (previously made by Rotair) features a Kubota D1105-E3B diesel engine that provides reliable, smooth and efficient power to the compressor and can produce 90 CFM at 100psi. The included minimum pressure check valve on air outputs prevents back-feeding of solids or liquids into the system.
The D90KA has additional options to meet you application needs. This includes a 2″ ball hitch, skid mounting for truck bed installation, a hose reel kit with 50ft of hose, and either 50 or 500 hour service kits.
Overview and Features
Features
- Kubota 1105-E3B 25 HP diesel engine
- 3 cylinders
- 3000 RPM max engine speed
- 4-stroke system, inline direct injection
- 1123 cc displacement
- Automatic glow plug system
- 7.9 gallon fuel tank
- Additional options:
- Ball hitch
- Hose reel kit
- Skid mount
- Service kits (50 or 500 hour)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 25 HP |
|---|---|
| Capacity | 90 CFM |
| Pressure | 100psi |
| Skid Option | Standard with wheels, Skid mount |
| Hitch | Standard pintle, 2" ball, None |
| Hose Reel Kit | None, Add hose reel kit (2x reels, drawbar mount, 50ft of hose/reel) |
