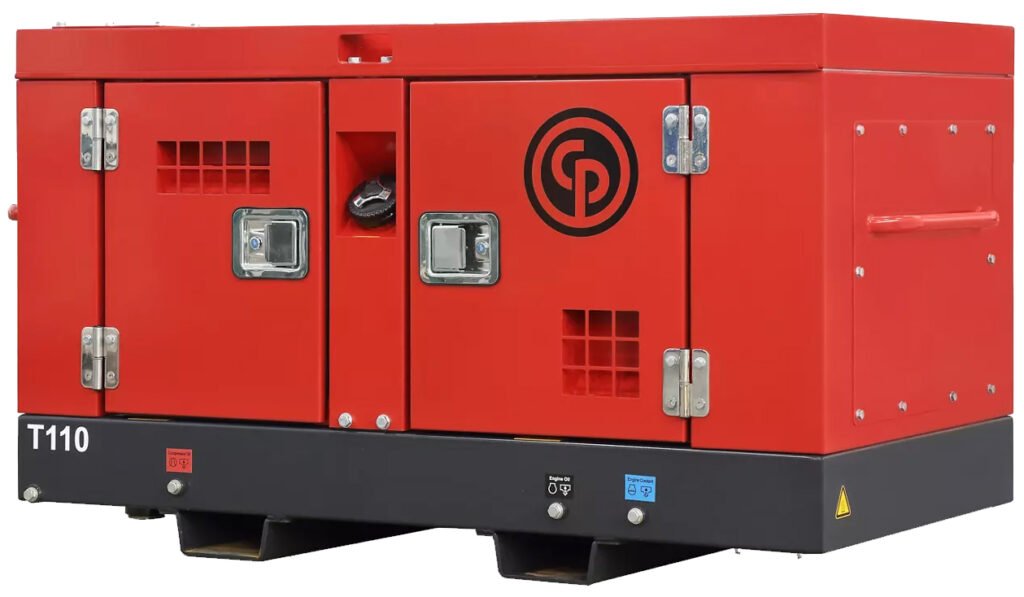

Chicago Pneumatic CPS T110 Utility Rotary Screw Air Compressor
Silenced, single-stage, oil-injected and powered by a liquid-cooled, three-cylinder Kubota diesel engine
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Chicago Pneumatic CPS T110 Utility Rotary Screw Air Compressor consists of one high efficient compressor element, diesel engine, cooling, air/oil separation and control systems, all enclosed within a silenced CPS strong steel canopy. The unit is 10% compact and 3-layer stackable. The containment frame is 110% spillage free, and the unit is serviced on a single side. The service interval is 1,500 hours.
The Kubota D902 diesel engine is US EPA Tier 4 Final certified, with a maximum loaded engine speed of 3,600 RPM.
Overview and Features
Features
- Skid mount
- 25 HP
- 100psi pressure rating
- 110 CFM capacity
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
