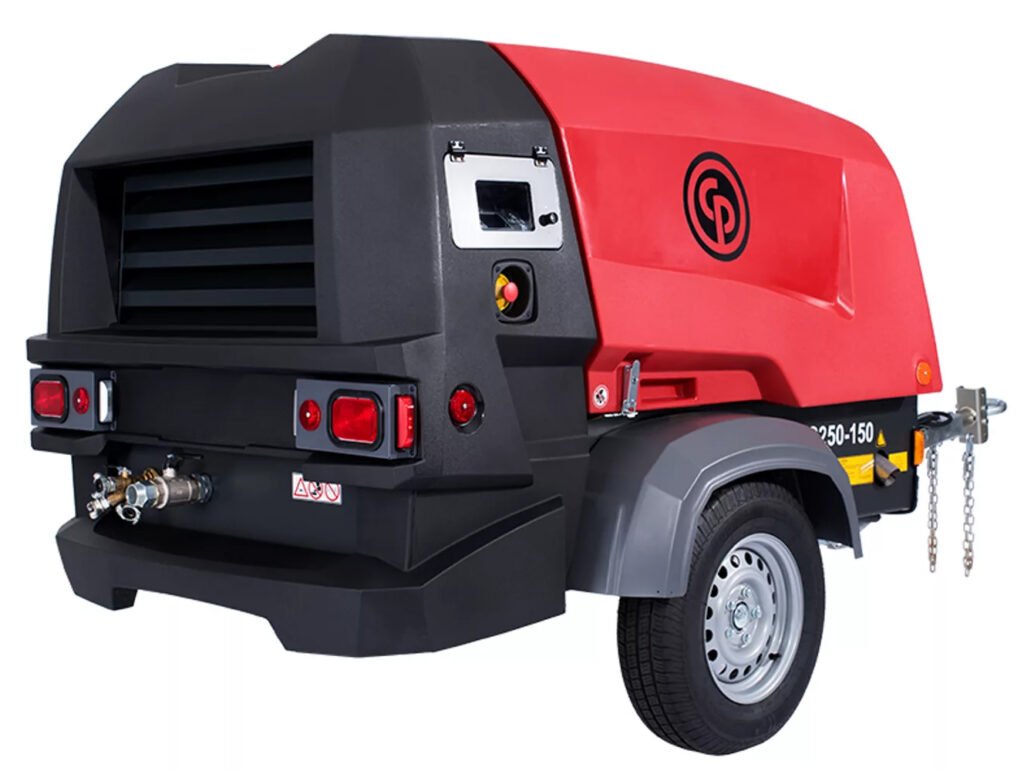

Chicago Pneumatic CPS 250 Portable Rotary Screw Air Compressor
Single-stage, oil-injected with Kubota diesel engine
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Chicago Pneumatic CPS 250 Portable Rotary Screw Air Compressor is powered by a liquid-cooled, four-cylinder turbocharged Kubota diesel engine. The unit hosts a C90 Screw element in its air end combined with a model V2403-CR-T-E4B Kubota diesel engine with a DPF in DOC exhaust treatment system, cooling circuit, air/oil separation and control systems, an undercarriage with fixed towbar, brakes and pintel eye available as standard.
The unit features PACE functionality coupled with an XC2003 controller, enabling multiple pressure and flow settings, matching air flow and pressure to the application’s needs.
Overview and Features
Features
- Portable base mount
- 65 HP
- 100psi pressure rating
- 238 CFM capacity
- Optional aftercooler available
- Air temperature at outlet valve without aftercooler: 177°F (80°C)
- Maximum ambient temperature at sea level with aftercooler: 113°F (45°C)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Aftercooler | Not included, Included: 113°F (45°C) maximum ambient temperature |
|---|
