ELGi

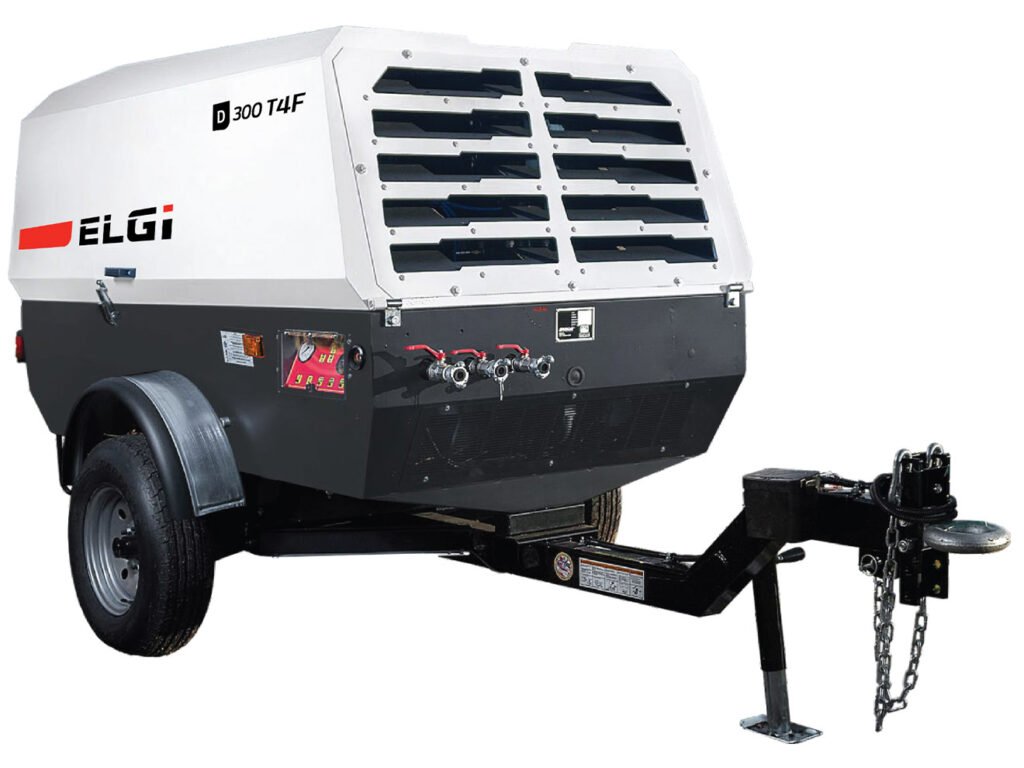

ELGi D300T4F Portable Diesel Driven Rotary Screw Air Compressor
73.6 HP direct drive air compressor produces 290 CFM at 100psi, available mounted on wheels or skid mounted for truck bed installation
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The ELGi D300T4F diesel powered rotary screw air compressor (previously made by Rotair) features a Kohler KDI2504 diesel engine that can produce 290 CFM at 100psi, allowing the unit to be used on job sites where larger compressors are required. The built-in intelligent start/stop system prevents cold starting and blowback. The optional dual pressure system allows the used to switch between 290 CFM at 100psi and 220 CFM at 150psi with ease.
The D300T4F has additional options to meet you application needs. This includes a cold weather kit (block heater and HD battery), 2″ ball hitch, dual pressure switch, skid mounting for truck bed installation, a hose reel kit with 50ft of hose, and either 50 or 500 hour service kits.
Overview and Features
Features
- Kohler KDI2504 73.6 HP diesel engine
- 4 cylinders
- 2600 RPM max engine speed
- 4-stroke system, turbo intercooler common rail
- 2482 cc displacement
- Turbo intercooler aspiration
- Automatic glow plug system
- 24 gallon fuel tank
- Additional options:
- Drawbar mounted aftercooler
- Cold weather kit
- Dual pressure switch
- Ball hitch
- Hose reel kit
- Skid mount
- Service kits (50 or 500 hour)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 73.6 HP |
|---|---|
| Capacity | 290 CFM |
| Pressure | 100psi |
| Aftercooler | None, Add internally mounted aftercooler (factory installed) |
| Cold Weather Kit | None, Add cold weather kit |
| Dual Pressure Switch | None, Add dual pressure switch (290 CFM/100psi and 220 CFM/150psi) |
| Skid Option | Standard with wheels, Skid mount |
| Hitch | Standard pintle, 2" ball, None |
| Hose Reel Kit | None, Add hose reel kit (two reels, drawbar mount, 50ft of hose per reel) |
