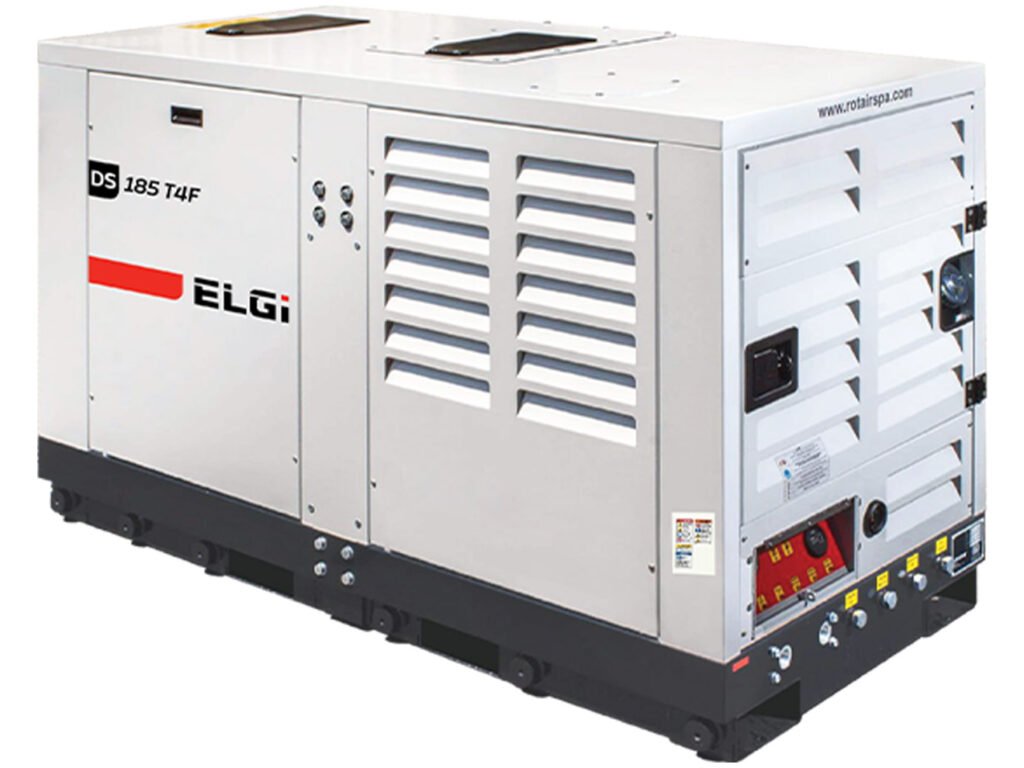

ELGi DS185T4F Diesel Driven Rotary Screw Air Compressor
49 HP utility, skid mounted air compressor produces 185 CFM at 100psi
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The ELGi DS185T4F diesel powered rotary screw air compressor (previously made by Rotair) features a Kubota D1105-E3B diesel engine that provides reliable, smooth and efficient power to the compressor and can produce 185 CFM at 100psi. The low-speed airend (max 2600 rpm) reduces heat and rotor/bearing failures. The curbside mounted control panel and adjacent air valves provide ease of operation and maximize operator safety.
The DS185T4F has additional options to meet you application needs. This includes a cold weather kit (block heater and HD battery) and either 50 or 500 hour service kits.
Overview and Features
Features
- Kohler KDI1903 49 HP diesel engine
- 3 cylinders
- 2600 RPM max engine speed
- 4-stroke system, inline direct injection
- 1903 cc displacement
- Turbo intercooler aspiration
- 23 gallon fuel tank
- Additional options:
- Cold weather kit
- Service kits (50 or 500 hour)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 49 HP |
|---|---|
| Capacity | 185 CFM |
| Pressure | 100psi |
| Cold Weather Kit | None, Add cold weather kit (block heater and HD battery) |
