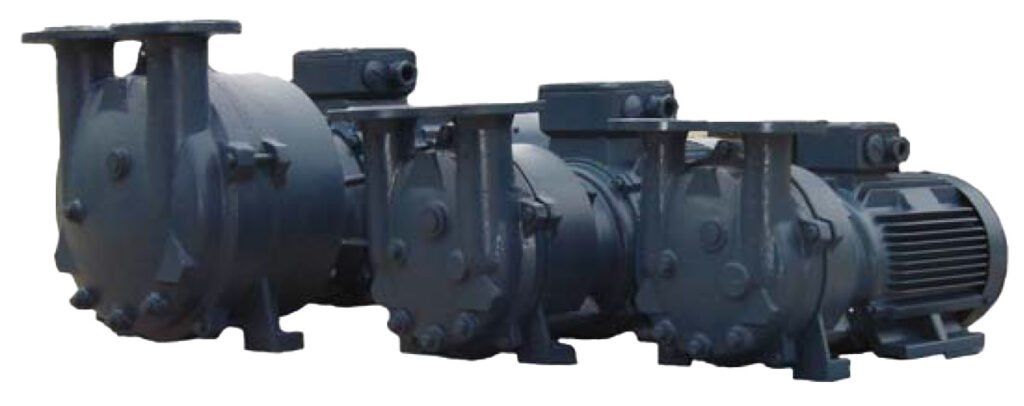

Velocity Industrial LRV/NC Series Liquid Ring Vacuum Pump
28.3 inHg maximum vacuum, 18 to 342 CFM, close coupled, 2 to 25 HP motors
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Velocity Industrial LRV/NC Series Liquid Ring Vacuum Pump is a single stage close-coupled pump capable of producing a vacuum to 29 inHg. The pump is available in various materials of construction (Iron/Stainless steel or All stainless steel). The LRV/NC Series provided with threaded connections for service liquid, pump draining and vacuum relief valve.
Overview and Features
Features
- 18 to 342 CFM
- 2 to 25 HP motors
- 1.5 to 11 GPM
- Iron/Stainless steel or All stainless steel construction options
- Oil free discharge
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 25 HP |
|---|---|
| Capacity | 18 CFM, 34 CFM, 56 CFM, 113 CFM, 157 CFM, 192 CFM, 342 CFM |
| Connection Size/Type | 1" NPT, 1-1/2" NPT, 2" Flange, 2-1/2" Flange, 3" Flange |
