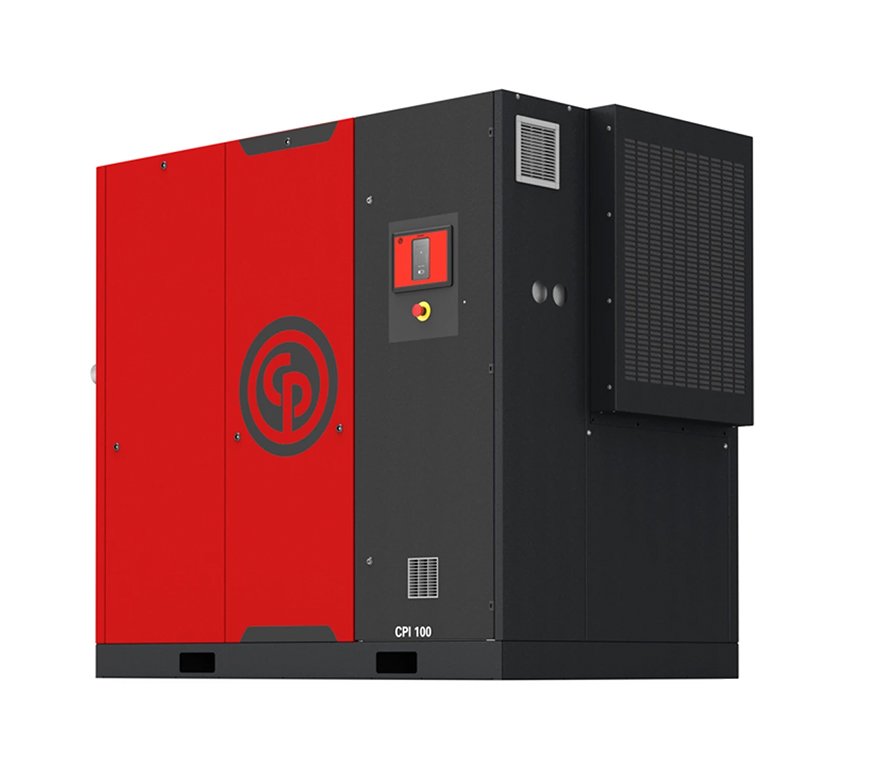

Chicago Pneumatic CPI Rotary Screw Compressor
75 to 120 hp, Gear driven, oil-injected screw compressor available with dryer options
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Chicago Pneumatic CPI Series is a line of oil-injected, rotary screw air compressors with a power range between 75 to 120 HP. These compressors feature an “all-in-one” design with no special foundation needed. All of the compressor service parts are located at the front of the unit, aiding in maintenance and service requirements. These compressors are fixed speed and fixed air volume, using load/unload regulation. The compressor turns to unload mode as soon as the set pressure is reached, and then starts the routine again when the pressure drops below its level. This allows the compressor to ensure constant air capacity.
Overview and Features
Features
- Air cooled rotary screw compressor
- 75 to 120 HP
- iP55 control panel
- ES4000 touch controller
- iE4 super premium efficiency motor
- Low sound enclosure
- Quick access panels
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 75 HP, 100 HP, 120 HP |
|---|---|
| Dryer | None, Integrated air dryer |
| Voltage | 230/3/60, 460/3/60 |
| Capacity | 375 CFM, 343 CFM, 326 CFM, 297 CFM, 623 CFM, 560 CFM, 519 CFM, 452 CFM, 524 CFM, 481 CFM, 434 CFM, 400 CFM |
| Pressure | 100 PSIG, 125 PSIG, 150 PSIG, 175 PSIG |
