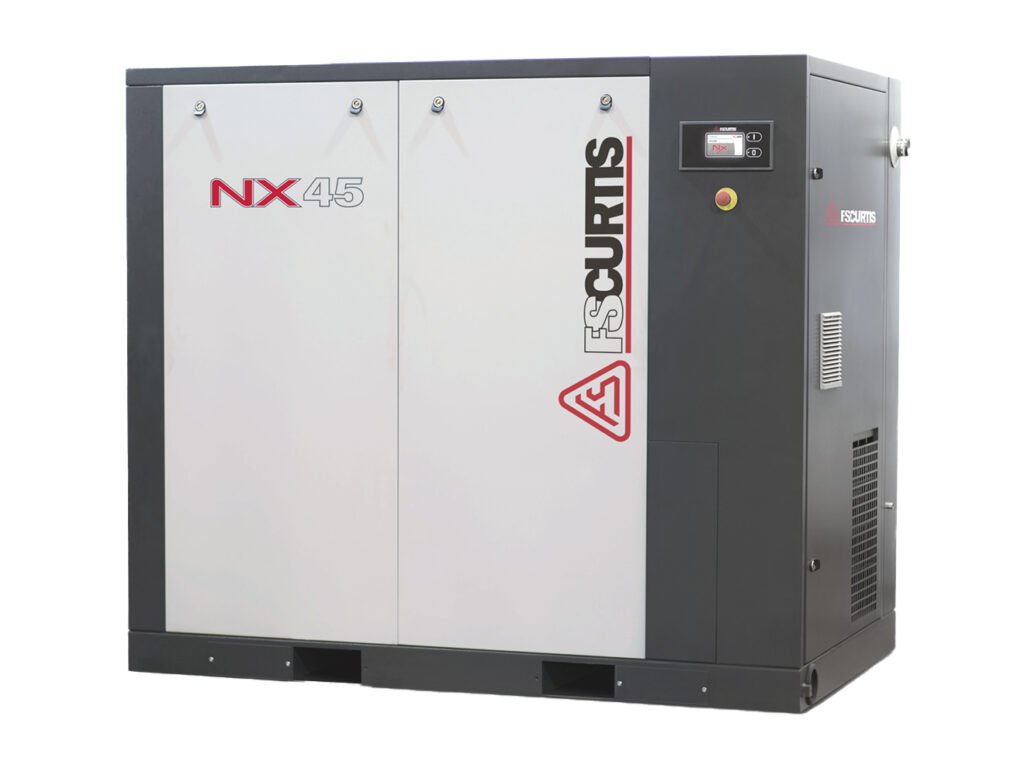

FS-Curtis NxD Series Direct Drive Rotary Screw Air Compressor
20 to 250 HP, base mount, integrated centrifugal fan and intelligent component layout for maximum efficiency and noise reduction.
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The FS-Curtis NxD Series Direct Drive Rotary Screw Air Compressor is a reliable choice for industrial power and manufacturing applications. The standard issued iCommand-Touch+ controller streamlines operations of the NxD through tracking of temperature, pressure, and critical datalogging. Trending and graphing capabilities are easily configured and viewed via a 7″ HMI full color touch screen. Expanded functionality through the controller permits integration with high level communication systems.
The IP 55, Class F rated TEFC enclosure protects the NxD motor from dust ingression and high operating temperatures. This temperature protection is maximized with eCOOL Technology through the combination of intelligent component layout and cooling centrifugal airflow to extend service life and reduce downtime. This layout and thick, laminated oil-proof sound insulation vastly improves noise reduction for smooth and quiet operation.
With a 100% continuous duty design, power efficiency of the NxD is further maximized via FS-Curtis’s exclusive airend with precision cut rotor profiles, and generously sized components to reduce pressure drops. Built for durability and reliability, each unit comes with a 5 year major components warranty and 10 year airend warranty.
Overview and Features
Features
- TEFC motor (IP55)
- Horsepower: 20 to 250 HP
- Voltage(s): 230/3/60, 460/3/60, 575/3/60
- Pressure rating: 100, 125, 150, 175 PSI
- Capacity: 223-1103 CFM
- Base mounted
- eCOOL technology
- Exclusive FS-Curtis airend
- Integrated centrifugal fan
- iCommand Controller
- 7” HMI full color touch screen
- Trending/graphing capabilities
- Integration capability with high level communication systems
- Pulsation-free compressed air
- 100% continuous duty
- dBA shield noise reduction
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 20 HP, 25 HP, 30 HP, 40 HP, 50 HP, 60 HP, 75 HP, 100 HP, 125 HP, 150 HP, 200 HP, 250 HP |
|---|---|
| Capacity | 288 CFM, 263 CFM, 246 CFM, 223 CFM, 356 CFM, 324 CFM, 293 CFM, 270 CFM, 495 CFM, 437 CFM, 416 CFM, 382 CFM, 553 CFM, 492 CFM, 448 CFM, 424 CFM, 938 CFM, 690.6 CFM, 673 CFM, 573.3 CFM, 536.8 CFM, 826 CFM, 760 CFM, 926.50 CFM, 815 CFM, 1103 CFM, 1026 CFM, 1038 CFM, 96 CFM, 88 CFM, 73 CFM, 62 CFM, 114 CFM, 115 CFM, 92 CFM, 78 CFM, 136 CFM, 124 CFM, 111 CFM, 201 CFM, 171 CFM, 142 CFM, 251 CFM, 226 CFM, 197 CFM, 182 CFM |
| Pressure | 100 PSI, 125 PSI, 150 PSI, 175 PSI |
| Voltage | 230/3/60, 460/3/60, 575/3/60 |
