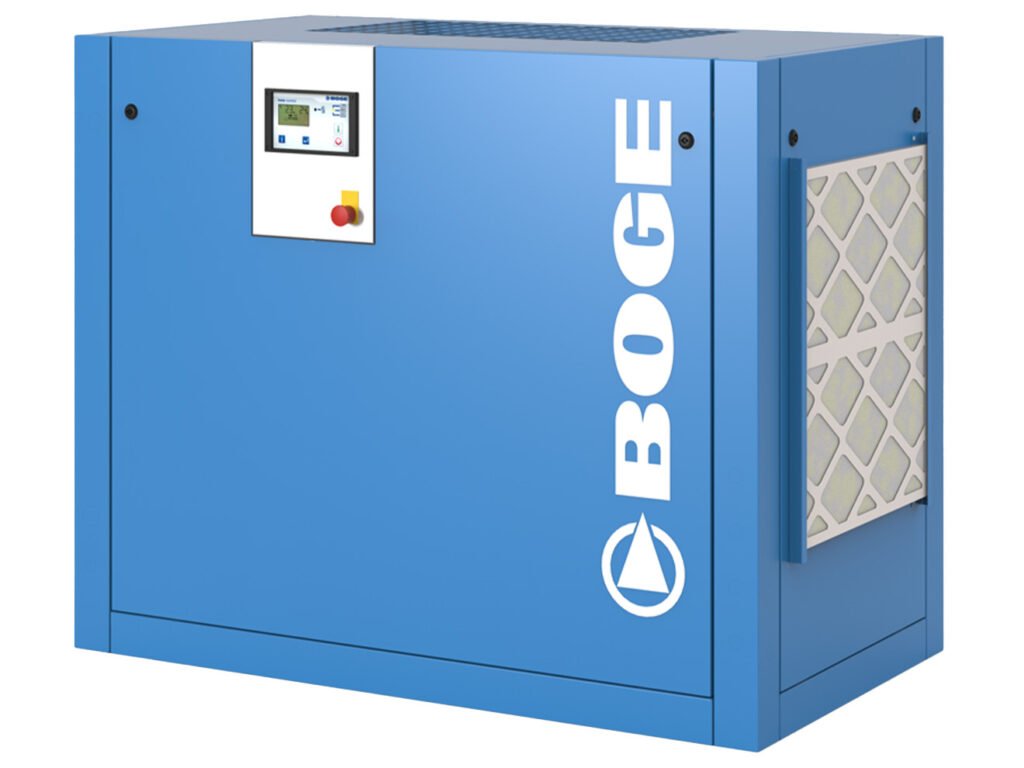

BOGE C-2 Series Fixed Speed Rotary Screw Air Compressor
15 to 30 HP, up to 135 CFM capacity, base or tank mounted, optional dryer available
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The BOGE C-2 Series Fixed Speed Rotary Screw Air Compressor is a compact and enclosed design, is available as a base mounted unit or can be mounted to a 120 gallon horizontal air receiver tank. An integrated refrigerated air dryer can be added to ensure clean and dry air output.
Overview and Features
Features
- 4 to 20 HP
- 36 to 135 CFM (depending on HP and pressure selected)
- Belt drive standard
- Direct drive available for 15 and 20 HP models
- 120 gallon tank mount option
- Integrated refrigerated air dryer option available
- Base Control standard with option to upgrade to Focus Control 2.0
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 15 HP, 20 HP, 25 HP, 30 HP |
|---|---|
| Drive | Belt Drive, Direct Drive |
| Capacity | 73 CFM at 100 PSI, 65 CFM at 125 PSI, 60 CFM at 150 PSI, 46 CFM at 190 PSI, 36 CFM at 215 PSI, 96 CFM at 100 PSI, 89 CFM at 125 PSI, 79 CFM at 150 PSI, 64 CFM at 190 PSI, 53 CFM at 215 PSI, 117 CFM at 100 PSI, 108 CFM at 125 PSI, 96 CFM at 150 PSI, 82 CFM at 190 PSI, 73 CFM at 215 PSI, 135 CFM at 100 PSI, 125 CFM at 125 PSI, 113 CFM at 150 PSI, 97 CFM at 190 PSI, 86 CFM at 215 PSI, 69 CFM at 100 PSI, 69 CFM at 125 PSI, 67 CFM at 150 PSI, 79 CFM at 100 PSI, 79 CFM at 125 PSI, 77 CFM at 150 PSI |
| Configuration | Base Mount, Base Mount with Integrated Air Dryer, 120 Gallon Tank Mount, 120 Gallon Tank Mount with Integrated Air Dryer |
| Voltage | 208/3/60, 230/3/60, 460/3/60, 575/3/60 |
| Options | Zero Loss Tank Drain, Modulation, Focus Control 2.0 |
