BOGE
BOGE CL Series Fixed Speed Rotary Screw Air Compressor
4 to 20 HP, up to 79 CFM capacity, base or tank mounted, optional dryer available
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

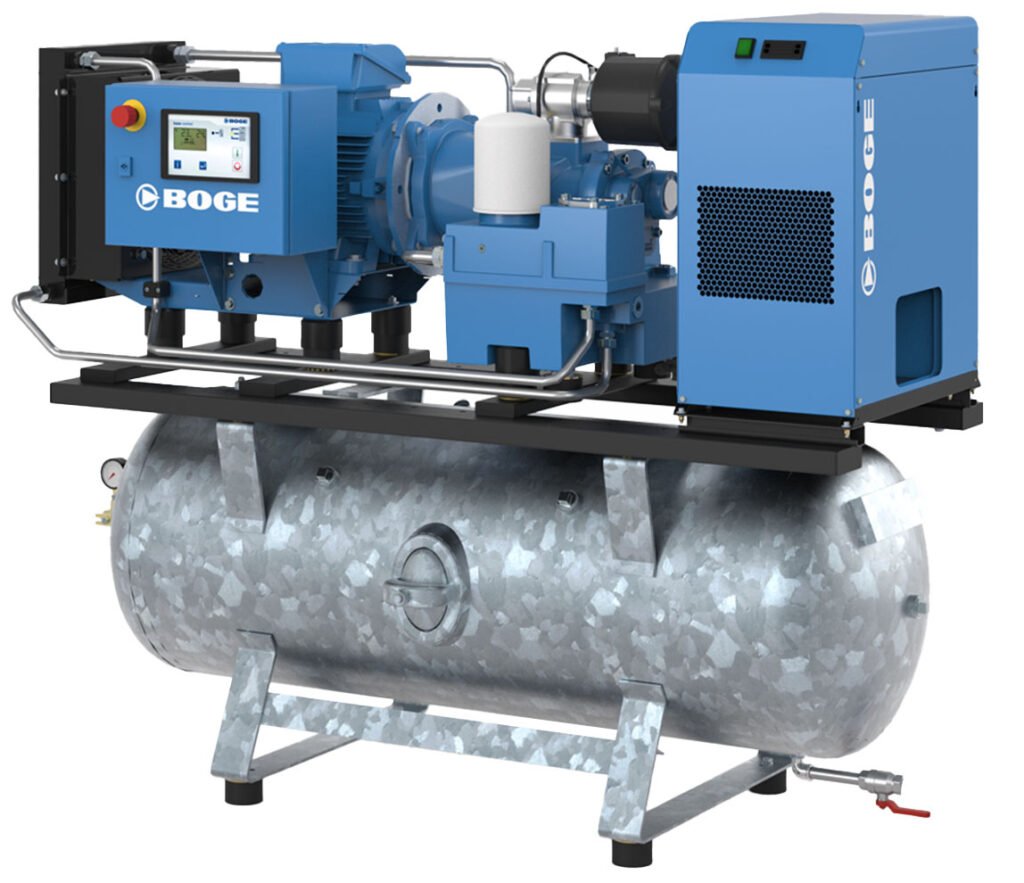

The BOGE CL Series Fixed Speed Rotary Screw Air Compressor is a compact design and is available as a base mounted unit or can be mounted to a horizontal air receiver tank. For tank mounted models, a refrigerated air dryer with pre-filter can be added to ensure clean and dry air output.
Overview and Features
Features
- 4 to 20 HP
- 11 to 79 CFM (depending on HP and pressure selected)
- 80 or 120 gallon tank mount options
- Refrigerated air dryer option available (tank mount only)
- Includes 1 micron pre-filter
- Base Control standard with option to upgrade to Focus Control 2.0
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 4 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP |
|---|---|
| Capacity | 12 CFM at 100 PSI, 12 CFM at 125 PSI, 11 CFM at 150 PSI, 15 CFM at 100 PSI, 15 CFM at 125 PSI, 14 CFM at 150 PSI, 30 CFM at 100 PSI, 30 CFM at 125 PSI, 39 CFM at 100 PSI, 39 CFM at 125 PSI, 37 CFM at 150 PSI, 69 CFM at 100 PSI, 69 CFM at 125 PSI, 67 CFM at 150 PSI, 79 CFM at 100 PSI, 79 CFM at 125 PSI, 77 CFM at 150 PSI |
| Configuration | Base Mount, 80 Gallon Tank Mount, 80 Gallon Tank Mount with Refrigerated Dryer (1 micron pre-filter included), 120 Gallon Tank Mount, 120 Gallon Tank Mount with Refrigerated Dryer (1 micron pre-filter included) |
| Voltage | 208/3/60, 230/3/60, 460/3/60, 575/3/60 |
| Options | Console Stand, Modulation, Zero Loss Tank Drain, Focus Control 2.0, Enclosure |
