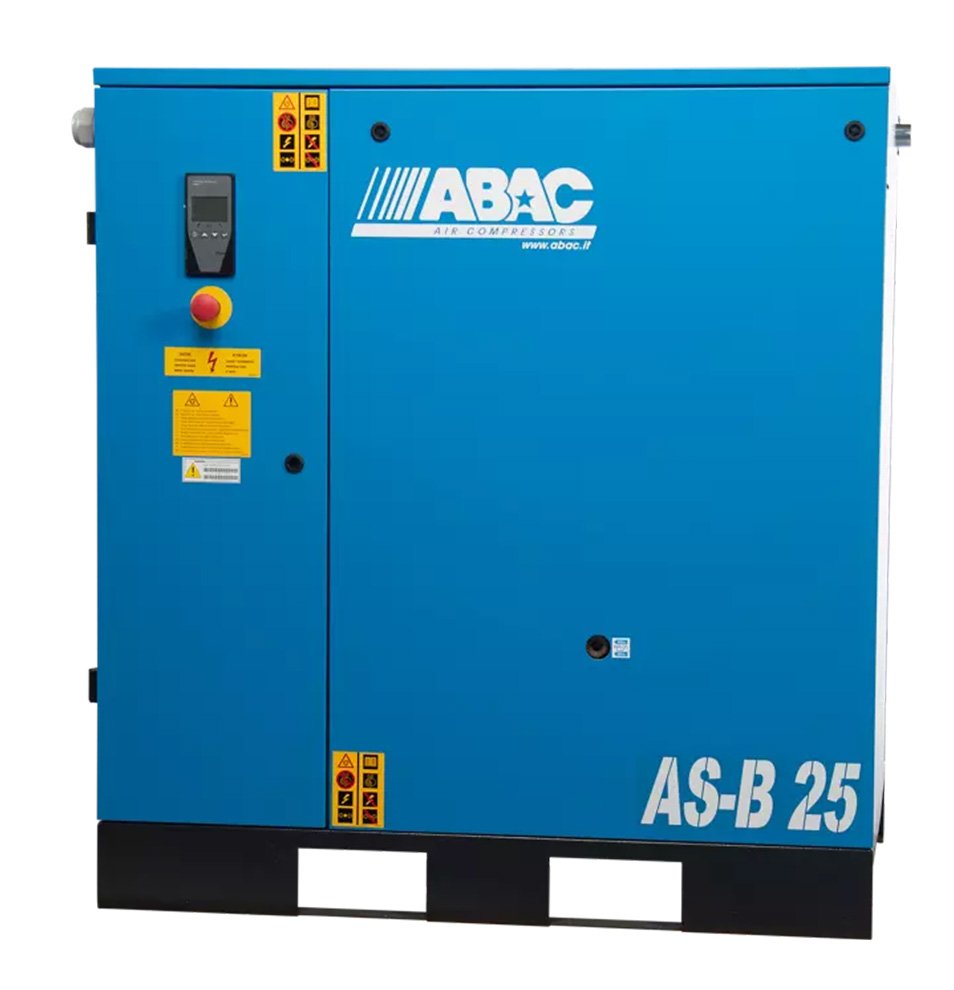

ABAC AS-B 20S-30 HP Series Rotary Screw Air Compressor
20 to 30 HP, up to 114.1 CFM, 208-230-460/3/60 voltage, base mount or tank mounted configurations, dryer option available
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The ABAC AS-B 20S-30 HP Series Rotary Screw Air Compressor features a fully integrated aluminum block, eco-friendly vertical oil separation technology, and an energy efficient motor. The state-of-the-art air-end design ensures limited air loss, high energy efficiency, longevity, and limited noise and vibrations. The AS-B 20S-30 HP Series is suitable for demanding automotive and industrial applications needing reliable and continuous compressed air supply.
Overview and Features
Features
- 20 to 30 HP models
- 78 to 114.1 CFM (depending on HP selected)
- Fully integrated aluminum block
- Vertical oil separation technology
- Intuitive Digital Controller
- 208-230-460/3/60 voltage on all models
- Base mount, tank mount, and tank mount with dryer configurations available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 20 HP, 25 HP, 30 HP |
|---|---|
| Capacity | 78 CFM at 150 PSI, 81.9 CFM at 125 PSI, 92.2 CFM at 150 PSI, 98.9 CFM at 125 PSI, 103.1 CFM at 150 PSI, 114.1 CFM at 125 PSI |
| Configuration | Base Mount, Base Mount with Dryer, 131 Gallon Tank Mount with Dryer |
