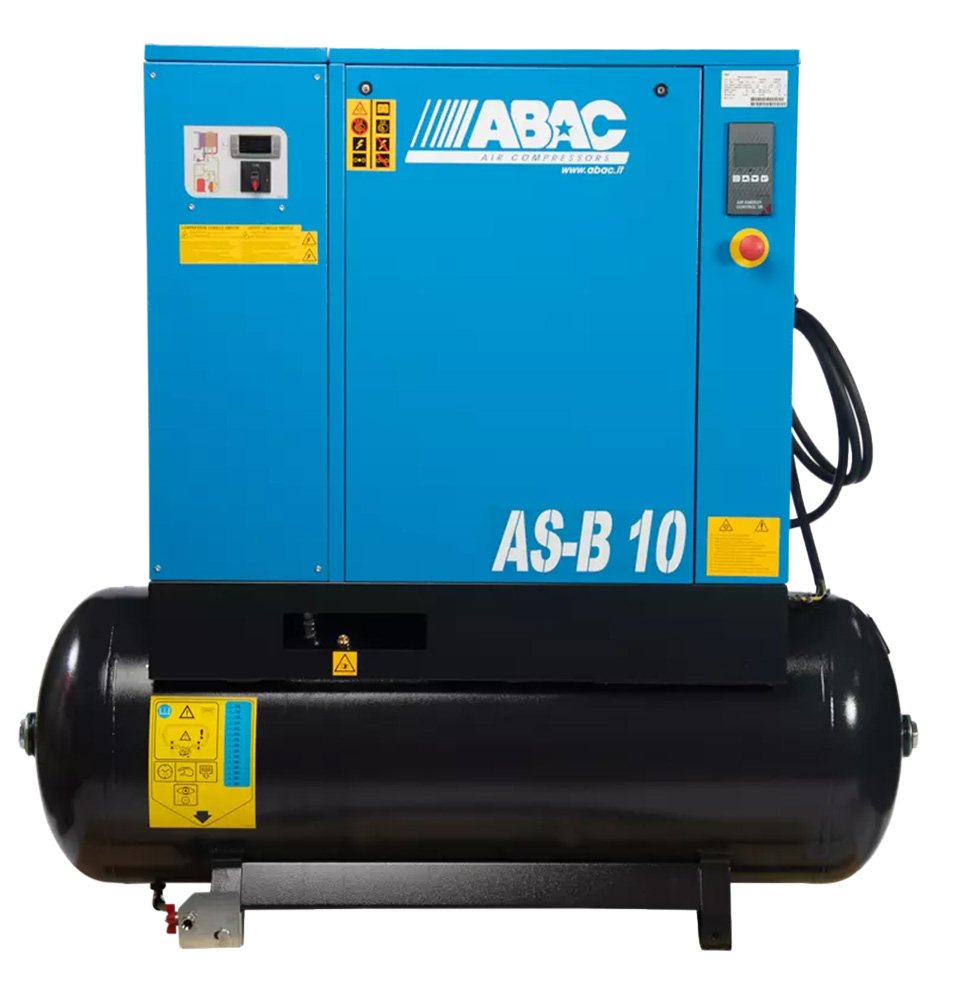

ABAC AS-B 5-20 HP Series Rotary Screw Air Compressor
5 to 20 HP, up to 60.6 CFM, base mount or tank mounted configurations, dryer option available
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The ABAC AS-B 5-20 HP Series Rotary Screw Air Compressor features a fully integrated aluminum block, eco-friendly vertical oil separation technology, and an energy efficient motor. The state-of-the-art air-end design ensures limited air loss, high energy efficiency, longevity, and limited noise and vibrations. Available in base mount, tank mount, and tank mount with dryer configurations – allowing for a unique and tailored application designed for your specific needs.
Overview and Features
Features
- 5 to 20 HP models
- 17.4 to 60.6 CFM (depending on HP selected)
- Fully integrated aluminum block
- Vertical oil separation technology
- Intuitive Digital Controller
- Base mount, tank mount, and tank mount with dryer configurations available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP |
|---|---|
| Capacity | 17.4 CFM at 150 PSI, 20.3 CFM at 125 PSI, 27.1 CFM at 150 PSI, 29.9 CFM at 175 PSI, 30.5 CFM at 125 PSI, 34.1 CFM at 150 PSI, 35.6 CFM at 150 PSI, 36.4 CFM at 125 PSI, 39.8 CFM at 125 PSI, 41.7 CFM at 175 PSI, 46.4 CFM at 150 PSI, 48.5 CFM at 175 PSI, 52.1 CFM at 125 PSI, 54 CFM at 150 PSI, 60.6 CFM at 125 PSI |
| Voltage | 230/1/60, 208-230-460/3/60 |
| Configuration | Base mount, 71 Gallon Tank Mount, 71 Gallon Tank Mount with Dryer, 131 Gallon Tank Mount, 131 Gallon Tank Mount with Dryer |
