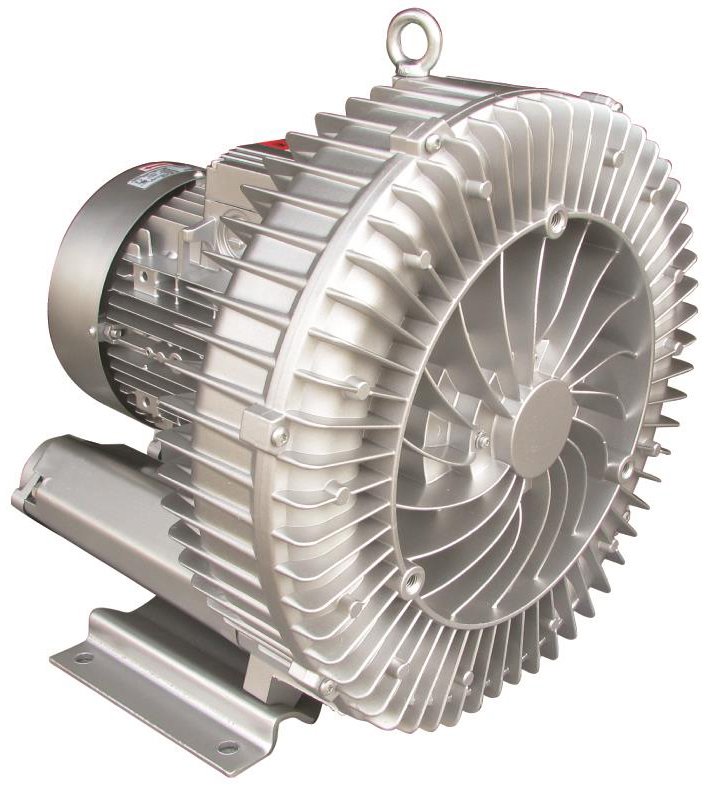

Airtech 3BA1 Series Two-Stage Regenerative Blower
Two-stage, 2.35 to 32.86 HP, 105 to 1440 CFM, vacuum/pressure regenerative blowers
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Airtech 3BA1 Series two-stage regenerative blower is an ideal alternative to standard rotary vane pumps and PD/rotary lobe blowers. Its innovative lightweight and compact design adds to the ease of operation. The 3BA1 Series blower’s close-coupled construction makes it easy to install, allowing it to be quickly added to existing systems. The cool running outboard bearings increase service life.
The 3BA1 Series two-stage blower is oil-free and maintenance-free, operating at an industry-low dB(A) sound level. It has an operating capacity range of up to 1440 CFM and can achieve an end vacuum of up to 20″ Hg or a pressure of 13 PSIG.
Overview and Features
Features
- 100% oil-free operation
- Non-contacting impeller
- Cooler outboard bearing design
- High performance deep groove ball bearings
- Rugged die-cast aluminum construction
- TEFC or explosion-proof motors
- IE3 premium efficient motor
- UL recognized and CE compliant
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 2.35 HP, 2.68 HP, 4.02 HP, 5.36 HP, 7.11 HP, 9.79 HP, 13.28 HP, 19.4 HP, 23.5 HP, 26.69 HP, 32.86 HP |
|---|---|
| Capacity | 105 CFM, 160 CFM, 235 CFM, 360 CFM, 780 CFM, 1440 CFM |
| Model | Two stage, single phase, Two stage, three phase |
| Pressure | -100 Vacuum H2O or 92 Pressure H2O, -128 Vacuum H2O or 124 Pressure H2O, -141 Vacuum H2O or 169 Pressure H2O, -153 Vacuum H2O or 145 Pressure H2O, -165 Vacuum H2O or 193 Pressure H2O, -141 Vacuum H2O or 128 Pressure, -177 Vacuum H2O or 201 Pressure H2O, -185 Vacuum H2O or 265 Pressure H2O, -145 Vacuum H2O or 132 Pressure H2O, -185 Vacuum H2O or 240 Pressure H2O, -197 Vacuum H2O or 301 Pressure H2O, -136 Vacuum H2O or 120 Pressure H2O, -177 Vacuum H2O or 173 Pressure H2O, -48 Vacuum H2O or 44 Pressure H2O, -76 Vacuum H2O or 72 Pressure H2O |
