FPZ

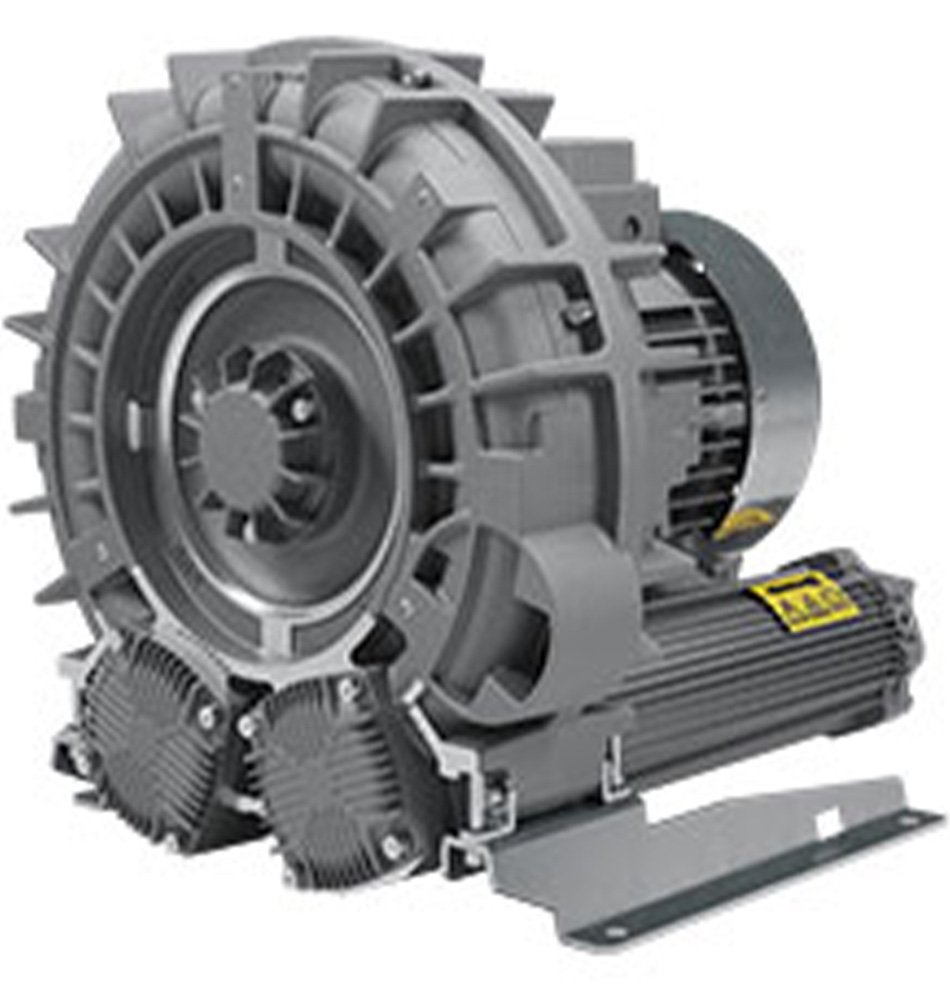

FPZ MD Series Regenerative Blower
SCL, 1.5 to 4 HP, single impeller two-stage blowers, for applications where higher pressures are required
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The FPZ MD Series Regenerative Blower is a Single impeller two-stage design that is ideal for applications where higher pressures are required with some models capable of over 10 psi. MD Series blowers are also ideal for applications that require a large turndown.
Overview and Features
Features
- 1.5 to 4 HP models available
- 41 to 78 CFM capacities
- Pressure:
- R20: 161 In WG
- R30, 2HP: 140 In WG
- R30, 3HP: 191 In WG
- R40, 3 HP: 141 In WG
- R40, 4 HP: 201 In WG
- Vacuum:
- R20: 10.3 In Hg
- R30: 11.1 In Hg
- R40: 11.1 In Hg
- Cast aluminum construction
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Drive Type | Bearing Driven Blower, Coupling Driven Blower (HIDDEN TEMP) |
|---|---|
| Horsepower | 1.5 HP, 2 HP, 3 HP, 4 HP, 5 HP |
| Capacity | 41 CFM, 65 CFM, 78 CFM |
| Voltage | 208-230/460/3/60, 115/230/1/60 |
| Hazardous Location Approval | None, Class 1, Division 1, Group D/ Class 2 groups E, F&G XP, Class 1, Division 2 Groups A, B, C, D |
