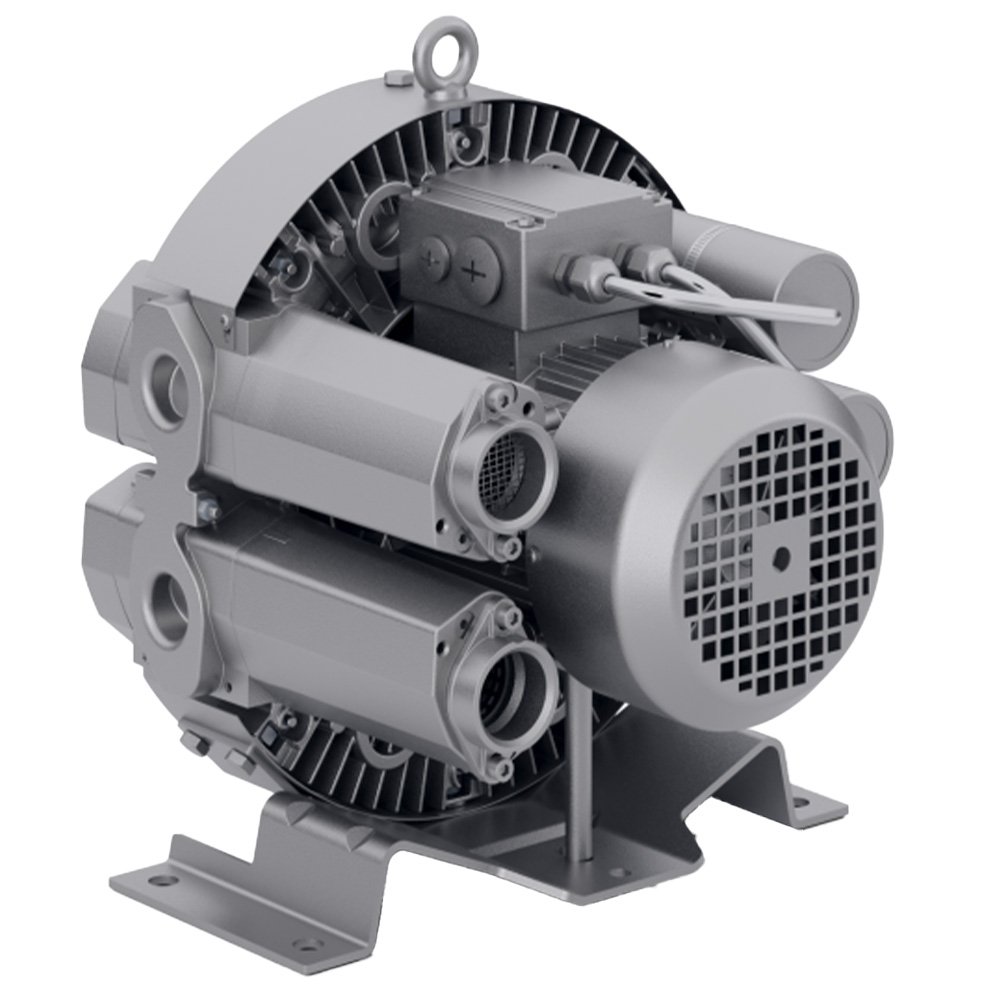

Republic Manufacturing 4RC Series High Pressure Regenerative Blower
34 to 118 CFM capacity blowers designed for high vacuum or compressed air applications, up to 281 inWC vacuum and 418 inWC pressure
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Republic Manufacturing 4RC Series High Pressure Regenerative Blower is manufactured with a single-stage (one impeller), double-stage (two impellers), or triple-stage (three impellers) configurations, which determine overall performance. These blowers provide a steady and efficient airflow, making them perfect for drying, conveying, aeration, and vacuum hold-down tasks. Their compact design, quiet operation, and energy efficiency make them a preferred choice for various industrial settings.
Overview and Features
Features
- 0.8 to 11.5 HP
- 34 to 118 CFM
- 108 inWC to 281 inWC vacuum
- 100 inWC to 418 inWC pressure
- IE3, cUL, UL, and CE certified
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 0.8 HP, 1.3 HP, 1.5 HP, 1.7 HP, 2.3 HP, 3.4 HP, 5.1 HP, 6.2 HP, 8.8 HP, 11.5 HP |
|---|---|
| Capacity | 34 CFM, 35 CFM, 45 CFM, 47 CFM, 62 CFM, 85 CFM, 115 CFM, 118 CFM |
| Vacuum / Pressure | 108 inWC Vacuum, 128 inWC Pressure, 104 inWC Vacuum, 100 inWC Pressure, 112 inWC Vacuum, 157 inWC Pressure, 141 inWC Vacuum, 157 inWC Pressure, 137 inWC Vacuum, 145 inWC Pressure, 177 inWC Vacuum, 193 inWC Pressure, 137 inWC Vacuum, 149 inWC Pressure, 201 inWC Vacuum, 297 inWC Pressure, 137 inWC Vacuum, 128 inWC Pressure, 145 inWC Vacuum, 193 inWC Pressure, 225 inWC Vacuum, 241 inWC Pressure, 193 inWC Vacuum, 193 inWC Pressure, 157 inWC Vacuum, 217 inWC Pressure, 173 inWC Vacuum, 165 inWC Pressure, 169 inWC Vacuum, 265 inWC Pressure, 145 inWC Vacuum, 126 inWC Pressure, 205 inWC Vacuum, 341 inWC Pressure, 153 inWC Vacuum, 213 inWC Pressure, 201 inWC Vacuum, 181 inWC Pressure, 213 inWC Vacuum, 325 inWC Pressure, 193 inWC Vacuum, 169 inWC Pressure, 209 inWC Vacuum, 337 inWC Pressure, 281 inWC Vacuum, 418 inWC Pressure |
| Stage | 1 stage, 2 stage, 3 stage |
| Voltage | 230/460/3/60, 115/230/1/60 |
