FPZ

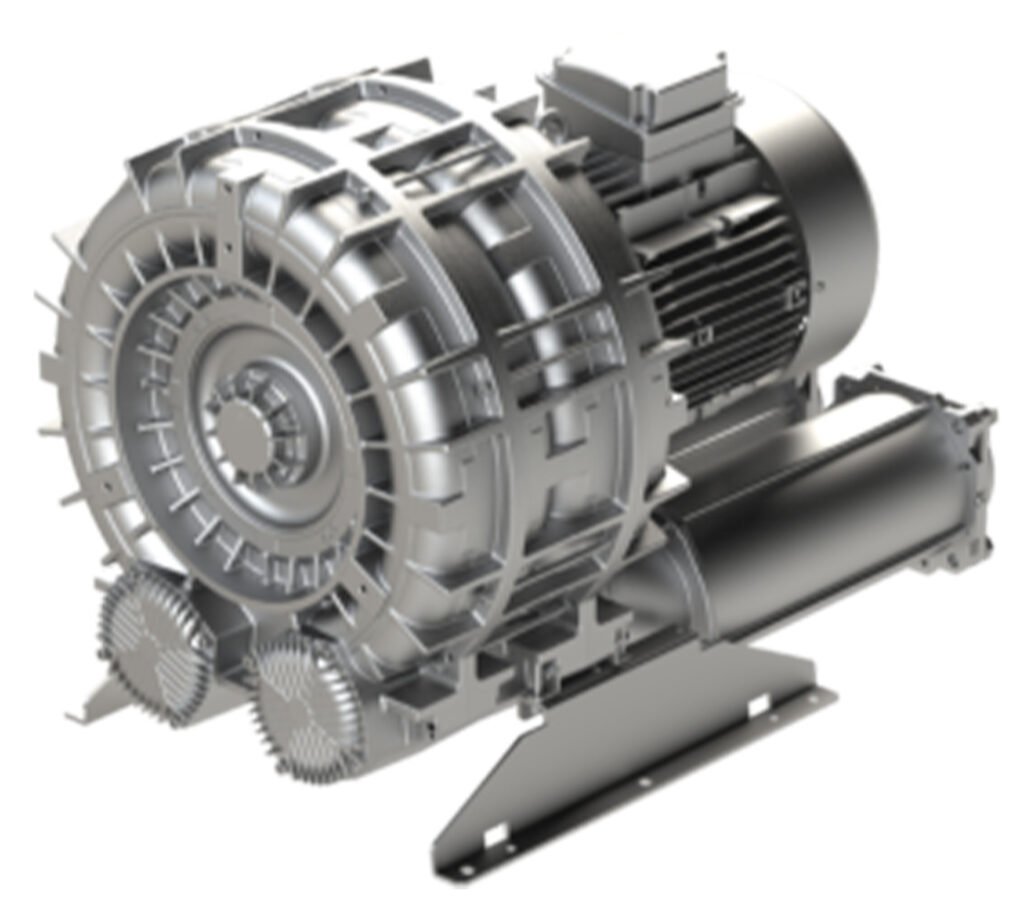

FPZ TS Series Regenerative Blower
SCL, 5.5 to 25 HP, twin impeller, single stage blower. Designed for high airflow applications, 290 to 1093 CFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The FPZ TS Series Regenerative Blower is a twin-impeller, single-stage design ideal for high-airflow applications up to 1093 CFM.
Overview and Features
Features
- 5.5 to 25 HP
- 290 to 1093 CFM
- Aluminium alloy construction
- TEFC-cURus motor
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5.5 HP, 10 HP, 15 HP, 20 HP, 25 HP |
|---|---|
| Capacity | 290 SCFM, 400 SCFM, 715 SCFM, 941 SCFM, 1093 SCFM |
| Connection | 3" NPT, 4" NPT, 5" NPT |
| Pressure | 72 In WG pressure, 5.3 In Hg vacuum, 85 In WG pressure, 6.3 In Hg vacuum, 60 In WG pressure, 4.4 In Hg vacuum, 80 In WG pressure, 5.9 In Hg vacuum, 110 In WG pressure, 8.1 In Hg vacuum, 80 In WG pressure, 4.4 In Hg vacuum |
| Voltage | 208-230/460/3/60 |
| Exterior Finish | Painted Finish, Aluminum Alloy Finish |
