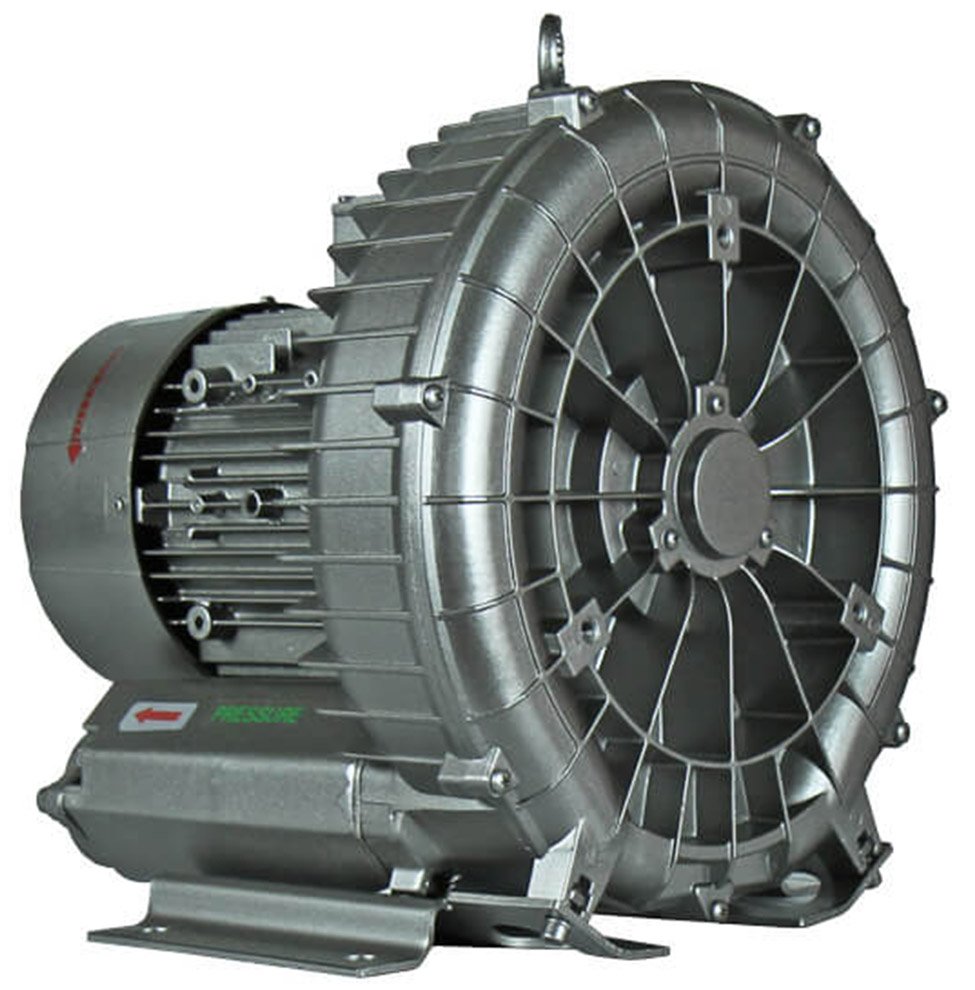

Republic Manufacturing HRC Series Regenerative Blower
Oil-free, contactless, high pressure regenerative blower, 36 to 971 CFM, 44 to 197 inWC vacuum
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Republic Manufacturing HRC Series Regenerative Blower is designed for high vacuum or compressed air applications in horizontal and vertical mounted positions. The TEFC motors are rated for 50/60 Hz operation and are IE3, cUL, UL, and CE certified. The impeller directly connects to the motor shaft, providing powerful air force without undue friction. The bearings are outside the compression chamber, ensuring maximum operational reliability under high differential pressure. This low-maintenance, oil-free design is constructed in robust diecast aluminum and provides continuous and dependable service.
Overview and Features
Features
- 0.3 to 38.9 HP
- 36 to 971 CFM
- 36 to 301 inWC pressure
- 44 to 197 inWC vacuum
- Directly connected impeller
- Diecast aluminum construction
- IE3, cUL, UL, and CE certified
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 0.3 HP, 0.7 HP, 1.1 HP, 1.7 HP, 2 HP, 2.4 HP, 2.5 HP, 2.7 HP, 2.8 HP, 3 HP, 3.4 HP, 3.5 HP, 4.6 HP, 6.2 HP, 6.4 HP, 6.5 HP, 8.4 HP, 11.5 HP, 13.1 HP, 15 HP, 16.9 HP, 19.4 HP, 23.2 HP, 25.5 HP, 28.6 HP, 30.8 HP, 38.9 HP |
|---|---|
| Capacity | 36 CFM, 58 CFM, 61 CFM, 77 CFM, 103 CFM, 106 CFM, 124 CFM, 150 CFM, 162 CFM, 194 CFM, 221 CFM, 227 CFM, 294 CFM, 364 CFM, 365 CFM, 494 CFM, 736 CFM, 771 CFM, 971 CFM |
| Vacuum / Pressure | 44 inWC Vacuum, 41 inWC Pressure, 60 inWC Vacuum, 64 inWC Pressure, 52 inWC Vacuum, 52 inWC Pressure, 56 inWC Vacuum, 56 inWC Pressure, 100 inWC Vacuum, 100 inWC Pressure, 84 inWC Vacuum, 88 inWC Pressure, 72 inWC Vacuum, 68 inWC Pressure, 100 inWC Vacuum, 104 inWC Pressure, 120 inWC Vacuum, 161 inWC Pressure, 63 inWC Vacuum, 71 inWC Pressure, 128 inWC Vacuum, 124 inWC Pressure, 64 inWC Vacuum, 60 inWC Pressure, 88 inWC Vacuum, 79 inWC Pressure, 79 inWC Vacuum, 108 inWC Pressure, 72 inWC Vacuum, 72 inWC Pressure, 104 inWC Vacuum, 116 inWC Pressure, 76 inWC Vacuum, 76 inWC Pressure, 124 inWC Vacuum, 120 inWC Pressure, 141 inWC Vacuum, 177 inWC Pressure, 141 inWC Vacuum, 132 inWC Pressure, 104 inWC Vacuum, 100 inWC Pressure, 96 inWC Vacuum, 92 inWC Pressure, 80 inWC Vacuum, 68 inWC Pressure, 153 inWC Vacuum, 145 inWC Pressure, 92 inWC Vacuum, 80 inWC Pressure, 104 inWC Vacuum, 104 inWC Pressure, 36 inWC Vacuum, 36 inWC Pressure, 165 inWC Vacuum, 193 inWC Pressure, 141 inWC Vacuum, 129 inWC Pressure, 64 inWC Vacuum, 64 inWC Pressure, 120 inWC Vacuum, 112 inWC Pressure, 177 inWC Vacuum, 201 inWC Pressure, 141 inWC Vacuum, 161 inWC Pressure, 108 inWC Vacuum, 104 inWC Pressure, 185 inWC Vacuum, 269 inWC Pressure, 72 inWC Vacuum, 56 inWC Pressure, 32 inWC Vacuum, 28 inWC Pressure, 158 inWC Vacuum, 248 inWC Pressure, 185 inWC Vacuum, 241 inWC Pressure, 60 inWC Vacuum, 60 inWC Pressure, 88 inWC Vacuum, 80 inWC Pressure, 197 inWC Vacuum, 301 inWC Pressure, 137 inWC Vacuum, 120 inWC Pressure, 153 inWC Vacuum, 169 inWC Pressure, 177 inWC Vacuum, 173 inWC Pressure, 177 inWC Vacuum, 217 inWC Pressure |
| Stage | 1 Stage, 2 Stage |
| Voltage | 230/460/3/60, 115/230/1/60 |
