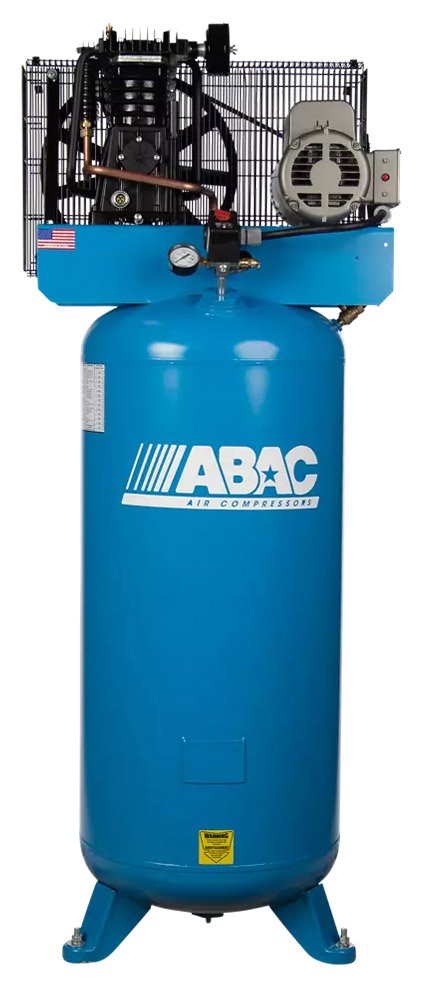

ABAC Belt Drive Two-Stage Piston Air Compressor
5 or 7.5 HP simplex compressor with up to 22.2 CFM capacity at 175 PSI, designed for heavy shop or industrial use
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The ABAC Belt Drive Two-Stage Piston Air Compressor combines a premium quality aluminum pump with cast iron cylinders, suitable for a variety of applications including air and water spraying, impact wrenching, screwing and so much more. The inner cooling technology manages operating temperature, reducing the risk of overheating and maximizing productivity.
Overview and Features
Features
- 5 or 7.5 HP
- 14.6 to 22.2 CFM (depending on HP selected)
- 175 PSI max pressure
- 60 or 80 gallon ASME air tank mount
- 60 gallon vertical 5 HP only
- 80 gallon horizontal 7.5 HP only
- Cast Iron Cylinders
- Aluminum Head and Aftercooler
- Fully Enclosed Belt Guard
- Optional premium package (80 gallon models only):
- Pressure Actuated Tank Drain
- Low Oil Level Switch
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP |
|---|---|
| Capacity | 14.6 CFM at 175 PSI, 16.6 CFM at 175 PSI, 22.2 CFM at 175 PSI |
| Configuration | 60 gallon vertical tank mount, 80 gallon vertical tank mount, 80 gallon horizontal tank mount |
| Package | Standard package, Premium package (Pressure Actuated Tank Drain and Low Oil Level Switch) |
| Voltage | 230/1/60, 230/3/60, 460/3/60 |
