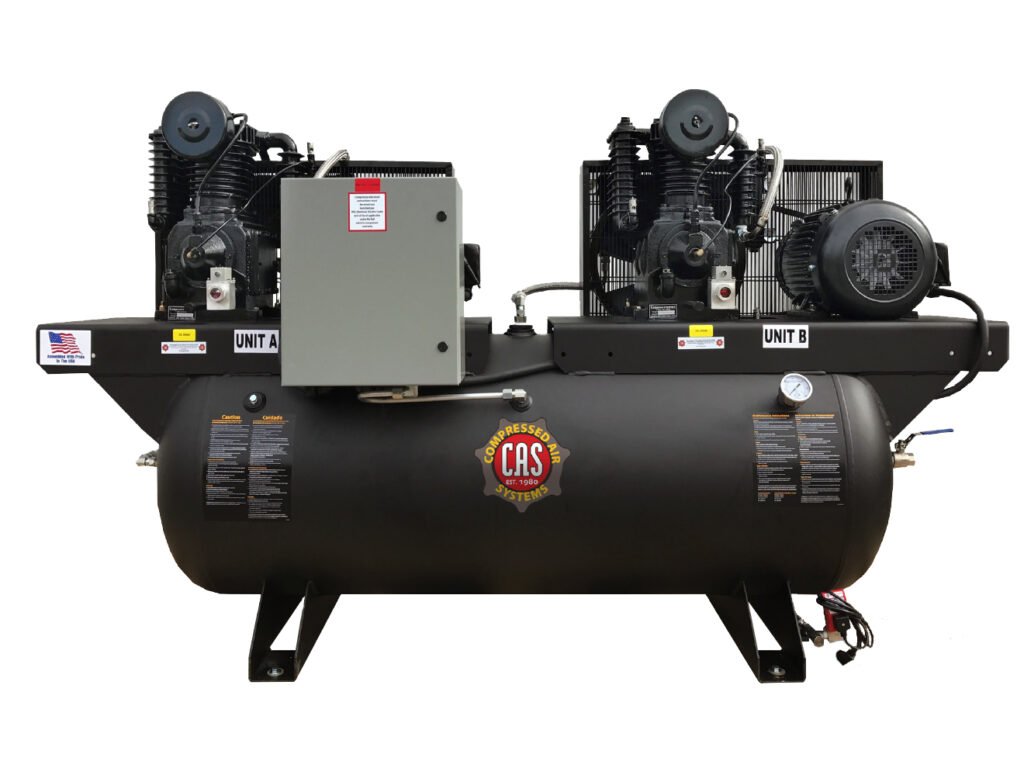

Compressed Air Systems Industrial Electric Stationary Duplex Piston Air Compressor
Provides access to compressor valves without compressor head removal
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Compressed Air Systems Industrial Electric Stationary Duplex Piston Air Compressor is designed for redundancy in all situations, and built to deliver twice the power in the same amount of space as a typical compressor. All units feature heavy-duty cast iron low-RPM pumps manufactured for durability and long life.
All electrical control covers are NEMA type 1 for indoor use. The minimum start voltage for standard motors is 208V.
Elite Package includes:
- Magnetic starter
- Belt guard after cooler
- Low oil monitor
- Automatic tank drain
- Vibration isolator pads
Overview and Features
Features
- 5 to 25 HP @ 175 PSI (time delay)
- 36 to 184 CFM capacity
- 120 or 240gal tank size
- Horizontal tank orientation
- Voltage options:
- 208-230/1
- 208-230/460/3
- Pressure lubricated pump option available
- No start-up kit required
- Auto start/stop
- Bearings on both ends of the crank shaft
- All UL electrical controls
- ASME tested powder coated steel tank
- Elite package includes:
- Magnetic starter
- Belt guard after cooler
- Low oil monitor
- Automatic tank drain
- Vibration isolator pads
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 25 HP |
|---|---|
| Voltage | 208-230/1, 208-230/460/3 |
| Capacity | 36 CFM, 48 CFM, 56 CFM, 68 CFM, 70 CFM, 106 CFM, 184 CFM |
| Package | Standard, Elite (magnetic starter, belt guard after cooler, oil monitor, auto tank drain, and vibration isolator pads) |
| Tank Size | 120gal, 240gal |
| Pump Type | Splash lubricated, Pressure lubricated |
