Compressed Air Systems

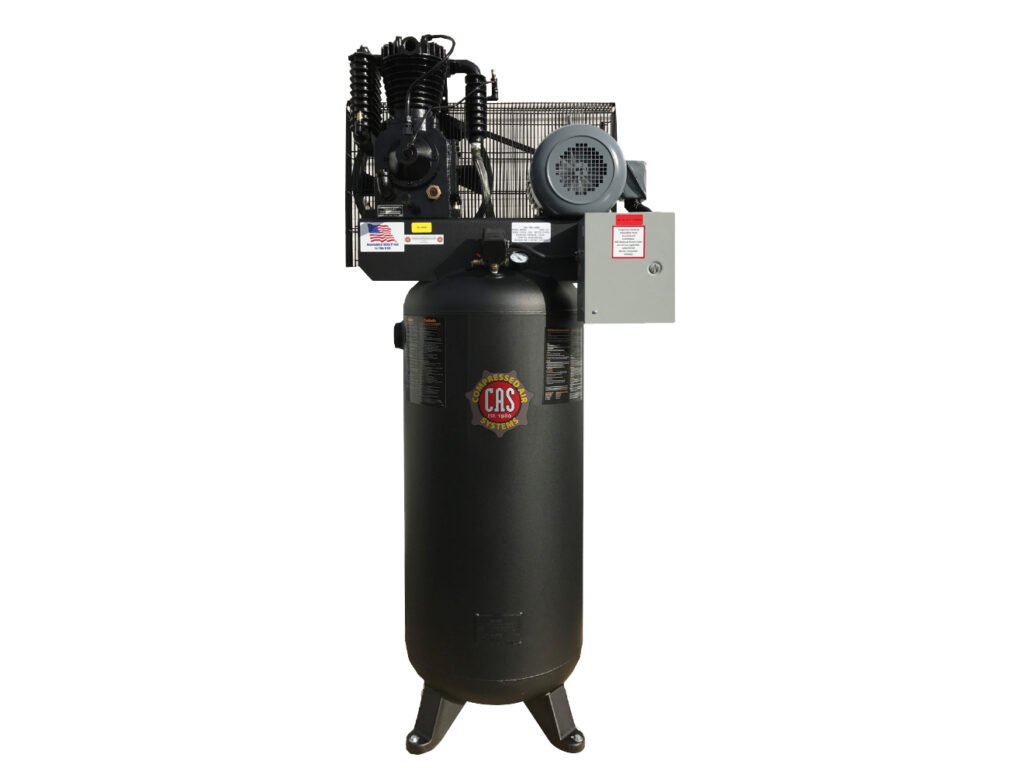

Compressed Air Systems Industrial Electric Stationary Piston Air Compressor
5 to 30 hp, provides access to compressor valves without compressor head removal
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Compressed Air Systems Industrial Electric Stationary Piston Air Compressor is designed for heavy commercial and industrial applications. The low RPM pumps provide reliable air, and are manufactured for durability and longevity.
Elite Package includes:
- Magnetic starter
- Belt guard after cooler
- Low oil monitor
- Automatic tank drain
- Vibration isolator pads
Overview and Features
Features
- 5 to 30 HP
- 18 to 102 ACFM @ 175 PSI
- 60 to 240gal tank size
- Vertical or horizontal tank orientation options
- Voltage options:
- 208-230/1
- 208-230/460/3
- Pressure lubricated pump option available
- Auto start stop
- Bearings on both ends of the crank shafts
- Heavy duty air filter and two stage solid cast iron pump
- Industrial grade electric motor
- Elite package includes:
- Magnetic starter
- Belt guard after cooler
- Low oil monitor
- Automatic tank drain
- Vibration isolator pads
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 25 HP, 30 HP |
|---|---|
| Capacity | 17 CFM, 24 CFM, 28 CFM, 35 CFM, 45 CFM, 51 CFM, 90 CFM, 110 CFM |
| Voltage | 208-230/1, 208-230/460/3 |
| Tank Size and Orientation | 60 gallon, vertical, 80 gallon, vertical, 80 gallon, horizontal, 120 gallon, vertical, 120 gallon, horizontal, 240 gallon, horizontal |
| Package | Standard, Elite (magnetic starter, belt guard after cooler, oil monitor, auto tank drain, and vibration isolator pads) |
| Pump Type | Splash lubricated, Pressure lubricated |
