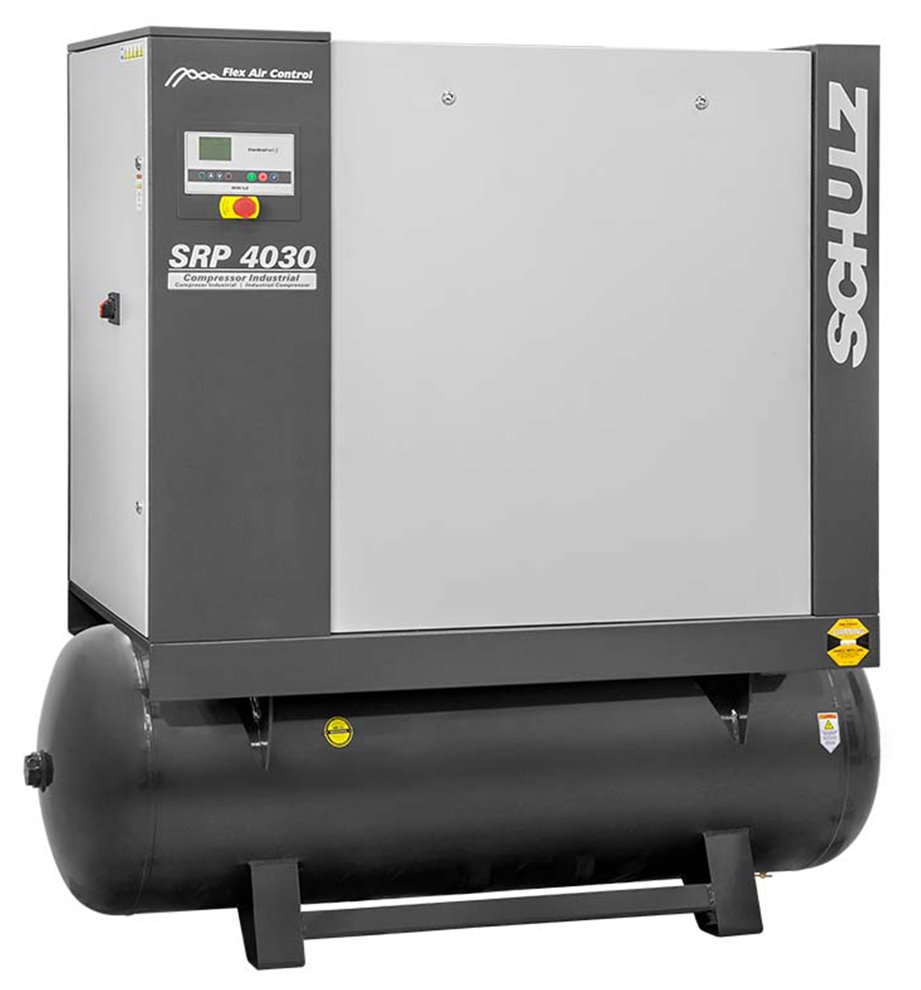

Schulz Compressors SRP FLEX Series Variable Speed Rotary Screw Air Compressor
Variable speed compressor up to 1141 CFM at 125 PSI, 10 to 200 HP
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Schulz Compressors SRP FLEX Series Variable Speed Rotary Screw Air Compressor offers an energy efficient solution in the generation of compressed air. The FLEX Series minimizes energy consumption and reduces pressure variations in the air network while air production is adjusted according to system demand. Models 25 HP and larger are direct driven for maximum efficiency. The FLEX Series incorporates variable speed controlled by a frequency inverter. A microprocessor controller works with the frequency inverter to monitor compressor operation, signals failures, sequence with other compressors in the compressor room and provides remote or local starting. Designed to operate 24 hours continuous in areas with ambient temperature up to 113°F, they are equipped with high efficiency, two stage intake filters which provide high quality air to the air end.
Overview and Features
Features
- 10 to 200 HP
- 35 to 1141 CFM
- 125 PSI max pressure
- 25 HP and larger models are direct drive
- Microprocessor controller built in
- 120 gallon tank mount (10 to 40 HP only) and base mount (50 to 250 HP only)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 10 HP, 15 HP, 20 HP, 25 HP, 30 HP, 40 HP, 50 HP, 75 HP, 100 HP, 125 HP, 150 HP, 200 HP |
|---|---|
| Capacity | 35 CFM at 125 PSI, 51 CFM at 125 PSI, 74 CFM at 125 PSI, 92 CFM at 125 PSI, 113 CFM at 125 PSI, 150 CFM at 125 PSI, 207 CFM at 125 PSI, 305 CFM at 125 PSI, 385 CFM at 125 PSI, 500 CFM at 125 PSI, 670 CFM at 125 PSI, 855 CFM at 125 PSI |
| Voltage | 208-230/3/60, 460/3/60 |
| Configuration | 120 gallon tank mount, Base mount |
