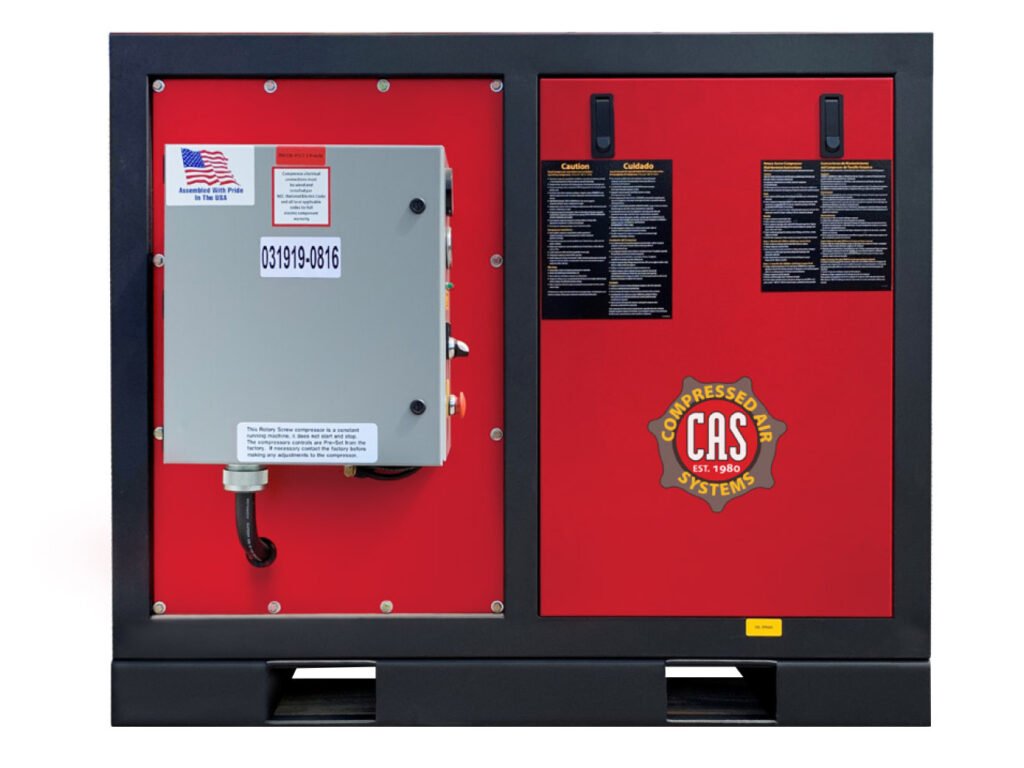

Compressed Air Systems RS Series Enclosed Rotary Screw Air Compressor
5 to 100 HP compressor with a sound attenuating enclosure for 100% duty cycle applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Compressed Air Systems RS Series Enclosed Rotary Screw Air Compressor is built in a sound attenuating enclosure, combining low dBA levels with reliability, efficiency, and productivity. The 100% duty cycle assures the compressor can’t be overworked. The RS Series features easy to read and access gauges, an easy to access oil cooler for cleaning, an extended oil drain with ball valve, and simplified operating controls with no micro-processor.
The RS Series enclosed compressor is available in a base mount configuration or in a CRD package that includes an air receiver tank, automatic tank drain, refrigerated air dryer, SMART contact controls, stainless steel discharge lines, and vibration isolation pads.
Overview and Features
Features
- 16 to 405 CFM at 150 PSI
- Base mount or tank mount with dryer configurations
- Air/oil cooler
- Automatic belt tensioning
- Factory filled synthetic fluid
- Heavy duty air filter
- Single control solenoid operation
- Spin on separator
- Vertical draft ventilation
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount, Tank mount with dryer |
|---|---|
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP, 40 HP, 50 HP, 60 HP, 75 HP, 100 HP |
| Capacity | 16 CFM at 150 PSI, 26 CFM at 150 PSI, 39 CFM at 150 PSI, 54 CFM at 150 PSI, 78 CFM at 150 PSI, 102 CFM at 150 PSI, 125 CFM at 150 PSI, 155 CFM at 150 PSI, 185 CFM at 150 PSI, 210 CFM at 150 PSI, 295 CFM at 150 PSI, 405 CFM at 150 PSI |
| Voltage | 208-230/1/60, 208-230/460/3/60, 460/3/60 |
| Tank Size and Orientation | None, 80 gallon, horizontal, 120 gallon, vertical |
