Compressed Air Systems

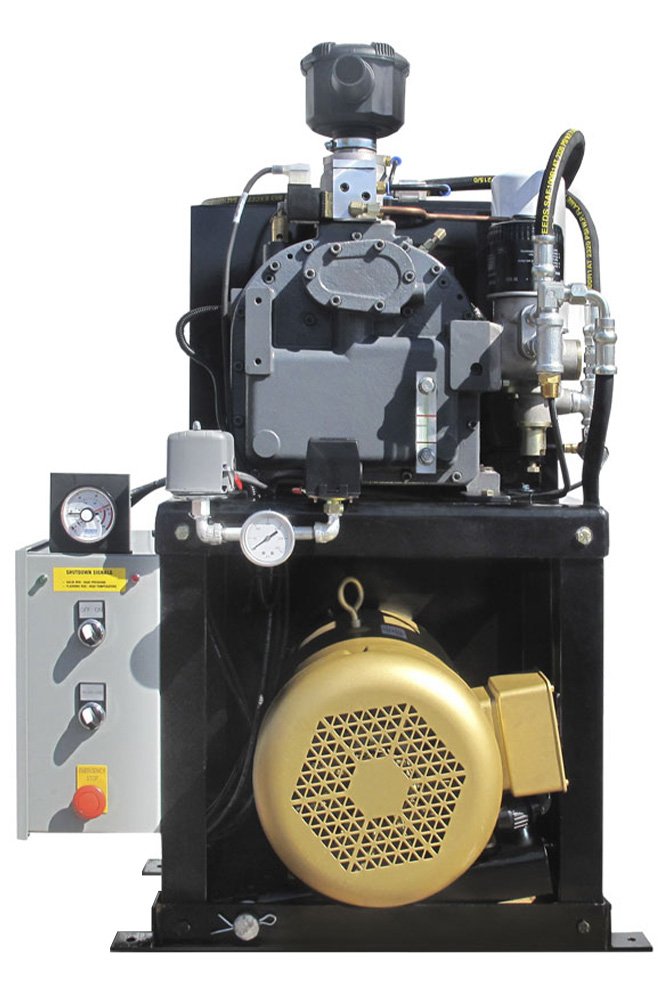

Compressed Air Systems RS Cube Series Rotary Screw Air Compressor
5 to 15 HP compact rotary screw compressor, up to 50 CFM at 150 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Compressed Air Systems RS Cube Series Rotary Screw Air Compressor allows for the user to purchase a functioning compressor without having to purchase an air receiver tank. If the site already has a certified functional air receiver, simply install the RS Cube Air System next to the existing tank and connect the air discharge line. If the there is no existing tank or the existing tank is no longer certified or functional, a stand-alone tank can be added to the system.
Overview and Features
Features
- 15 to 50 CFM at 150 PSI
- Air/oil cooler
- Analog controls
- Industrial-duty electric drive motor
- Heavy duty air filter
- High air temperature sensor
- High oil temperature sensor
- High pressure sensor
- Self tensioning drive belt system
- Single solenoid operation
- Spin on separator and oil filter
- Vibration isolation pads
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP |
|---|---|
| Capacity | 15 CFM at 150 PSI, 24 CFM at 150 PSI, 34 CFM at 150 PSI, 37 CFM at 150 PSI, 50 CFM at 150 PSI |
| Voltage | 208-230/1/60, 208-230/460/3/60 |
