Saylor-Beall

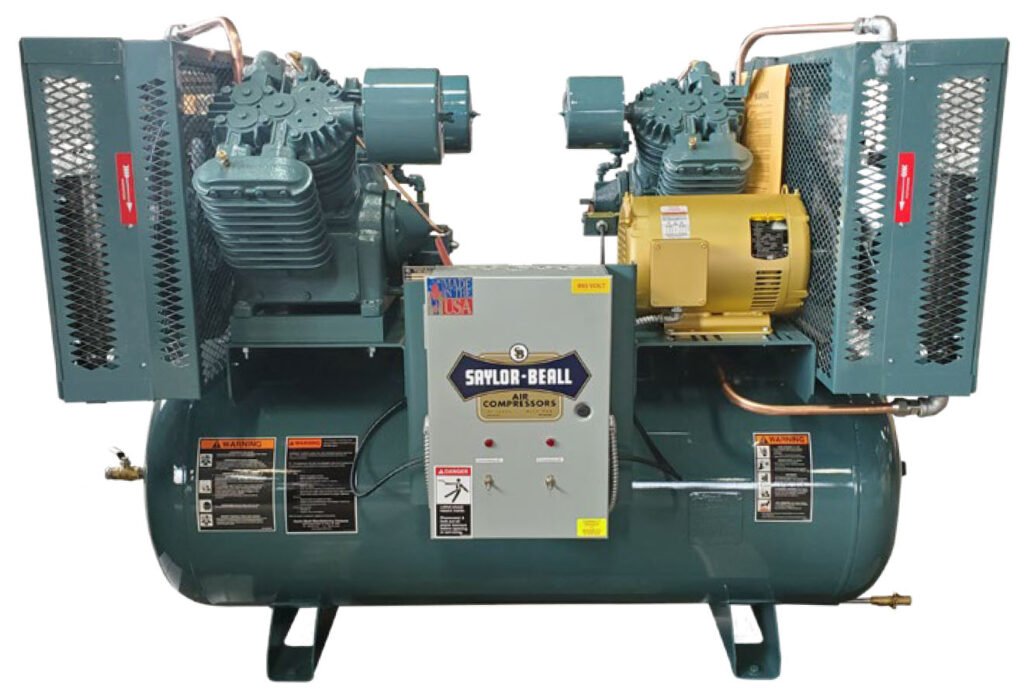

Saylor-Beall Performance Package Duplex Two Stage Piston Air Compressor
Duplex two stage air compressor package with air-cooled aftercooler, magnetic starter, low oil control, auto drain, and dual control
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Saylor-Beall Performance Package Duplex Two Stage Piston Air Compressor is manufactured with durable cast iron construction to withstand the stress from heat and use. These compressors incorporate a low oil control switch, air-cooled aftercooler, vibration isolator pads, quiet intake filter, magnetic starter, and an automatic tank drain into one package. Available in 1.5 to 3 HP options (11.6 to 22.2 CFM) with a maximum working pressure of 175 PSI. The compressor is mounted on a 80 gallon horizontal receiver tank.
Overview and Features
Features
- 1.5 to 3 HP options
- 11.6 to 22.2 CFM capacity options
- 175psi max working pressure
- Performance package:
- Aftercooler
- Magnetic starter
- Low oil control
- Auto tank drain
- Vibration isolators
- Quiet intake filter
- Dual control
- Cast iron pump construction
- Finned cylinder head and
- Finned intercooler
- Centrifugal unloader, no load start
- 80 gallon receiver tank
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Tank mount |
|---|---|
| Horsepower | 1.5 HP, 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP |
| Capacity | 11.6 CFM, 15 CFM, 22.2 CFM, 34.6 CFM, 53.8 CFM, 68.8 CFM, 102 CFM, 152.2 CFM, 179.2 CFM, 202.2 CFM |
| Pressure | 175 PSI |
| Tank Size | 80 gallon, 120 gallon, 200 gallon, 240 gallon |
| Voltage | 208/3/60, 230/3/60, 460/3/60, 230/1/60 |
| Pressure Lube Option | None, Add Pressure Lube |
