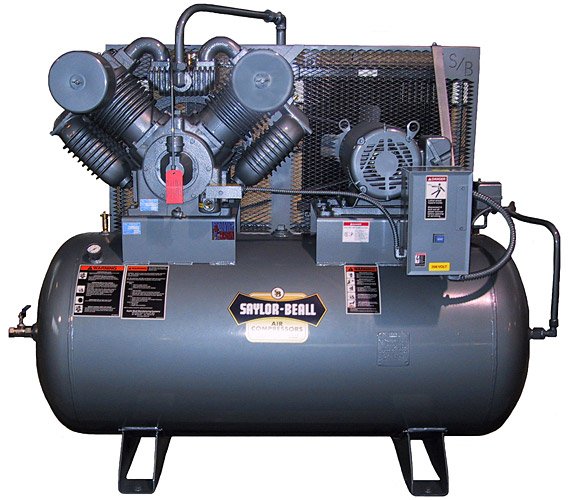

Saylor-Beall Tank Mounted Two Stage Piston Air Compressor
1.5 to 30 hp, splash or pressure lubricated electric driven compressor pump with horizontal or vertical tank mounting options
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Saylor-Beall Tank Mounted Two Stage Piston Air Compressor is manufactured with durable cast iron construction to withstand the stress from heat and use. These compressors are available in 1.5 to 30 HP options (1.8 to 101.1 CFM) with a maximum working pressure of 175psi. The compressors can be mounted on either a vertical or horizontal air tank ranging in capacities from 60 to 240 gallons.
Overview and Features
Features
- 1.5 to 30 HP options
- 5.8 to 101.1 CFM capacity options
- 175psi max working pressure
- Cast iron pump construction
- Finned cylinder head and
- Finned intercooler
- Centrifugal unloader, no load start
- Manual drain
- 60, 80, 120, 200, and 240 gallon tank sizes available
- Optional magnetic starter available
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Tank mount |
|---|---|
| Horsepower | 1.5 HP, 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP |
| Capacity | 5.8 CFM, 7.5 CFM, 11.1 CFM, 17.3 CFM, 18.5 CFM, 26.2 CFM, 34.4 CFM, 38 CFM, 51 CFM, 61.2 CFM, 76.1 CFM, 89.6 CFM, 101.1 CFM |
| Pressure | 175 PSI |
| Lubrication | Splash lubricated, Pressure lubricated |
| Tank Size | 60 gallon, 80 gallon, 120 gallon, 200 gallon, 240 gallon |
| Tank Orientation | Horizontal, Vertical |
| Voltage | 208/3/60, 230/3/60, 460/3/60, 230/1/60 |
| Magnetic Starter | None, Include magnetic starter |
| Air Cooled Aftercooler | None, Add belt guard mounted aftercooler |
