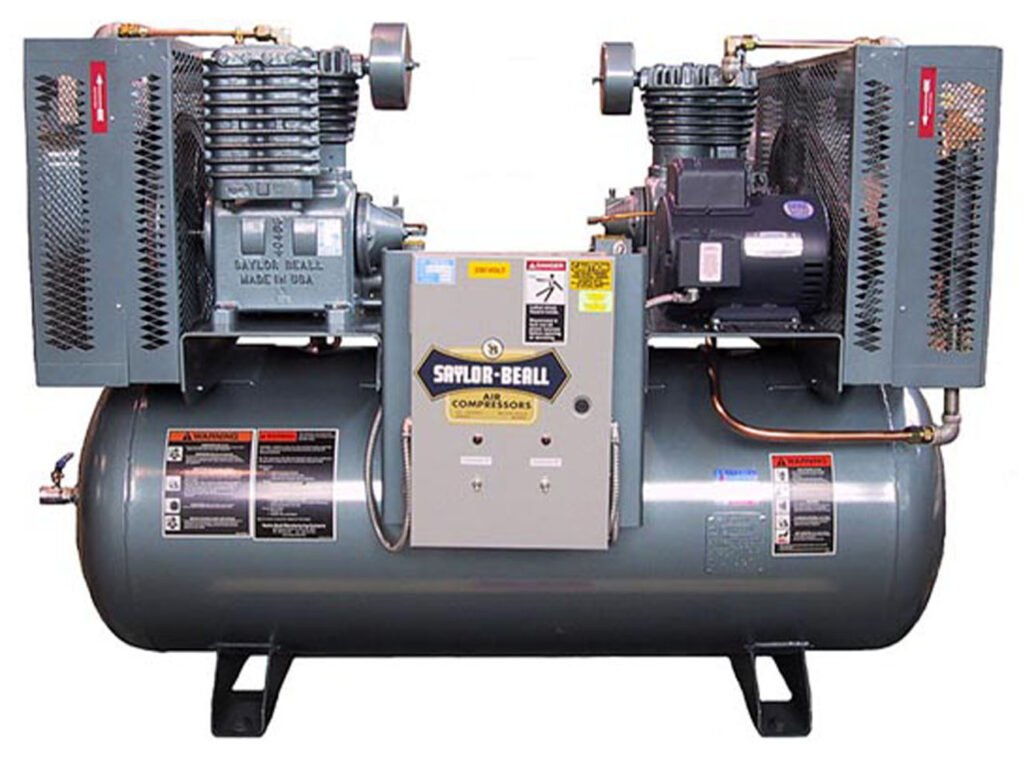

Saylor-Beall Duplex Two Stage Piston Air Compressor
1.5 to 30 hp, splash or pressure lubricated electric driven compressor pump mounted on a horizontal receiver tank
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Saylor-Beall Duplex Two Stage Piston Air Compressor is manufactured with durable cast iron construction to withstand the stress from heat and use. These compressors are available in 1.5 to 30 HP options (11.6 to 202.2 CFM) with a maximum working pressure of 175psi. These compressors are mounted to 80, 120, 200 or 240 gallon horizontal receiver tanks with a manual drain (optional automatic drain available).
Overview and Features
Features
- 1.5 to 30 HP options
- 11.6 to 202.2 CFM capacity options
- 175psi max working pressure
- Cast iron pump construction
- Finned cylinder head and
- Finned intercooler
- Centrifugal unloader, no load start
- Manual drain
- 80, 120, 200, and 240 gallon tank sizes available
- Optional automatic tank drain and alternator control panel available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Tank mount |
|---|---|
| Horsepower | 1.5 HP, 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP |
| Capacity | 11.6 CFM, 15 CFM, 22.2 CFM, 34.6 CFM, 37 CFM, 53.8 CFM, 68.8 CFM, 76 CFM, 102 CFM, 122.4 CFM, 152.2 CFM, 179.2 CFM, 202.2 CFM |
| Pressure | 175 PSI |
| Lubrication | Splash lubricated, Pressure lubricated |
| Tank Size | 80 gallon, 120 gallon, 200 gallon, 240 gallon |
| Voltage | 208/3/60, 230/3/60, 460/3/60, 230/1/60 |
| Automatic Tank Drain | None, Add automatic tank drain |
