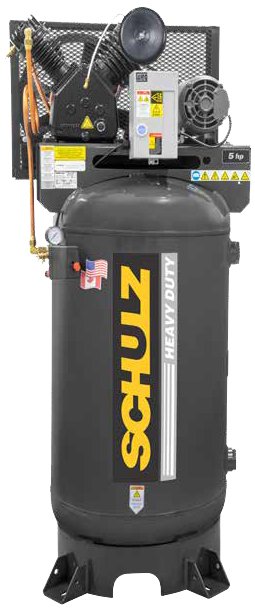

Schulz Compressors V Series Two-Stage Piston Air Compressor
Tank mounted two-stage air compressor, 5 to 20 HP, 175 PSI max pressure
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Schulz Compressors V Series Two-Stage Piston Air Compressor is designed for high cooling, efficiently generating compressed air with lower temperatures. The V Series is available in vertical or horizontal tank configurations, and operate in low RPMs as two stage models on cast iron blocks. Mounted and prewired magnetic starters ensure safe operation and ease of use, and the unit’s safety valve and air receiver are ASME certified. The 10 to 20 HP models include wired TEFC motors. The pressure switch operates on an automatic start/stop, and a manual condensate drain assists in keeping the system clean.
Overview and Features
Features
- Tank mounted, vertical or horizontal orientation
- 80 or 20gal tank size
- 5 to 20 HP
- 20 to 80 CFM
- 175 PSI pressure rating
- 230/1/60 or 208-230/460/3/60 voltage
- Powder coated ASME receivers
- Enclosed metal belt guard
- Accessible belt for tension adjustment
- Balanced drive pulleys
- Oversized check valves
- Pressure gauge
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP |
|---|---|
| Capacity | 15.1 CFM, 20.1 CFM, 25.9 CFM, 45 CFM, 58.4 CFM |
| Tank Size | 80 gallon, 120 gallon |
| Tank Orientation | Vertical, Horizontal |
| Voltage | 208-230/460/3/60, 230/1/60 |
