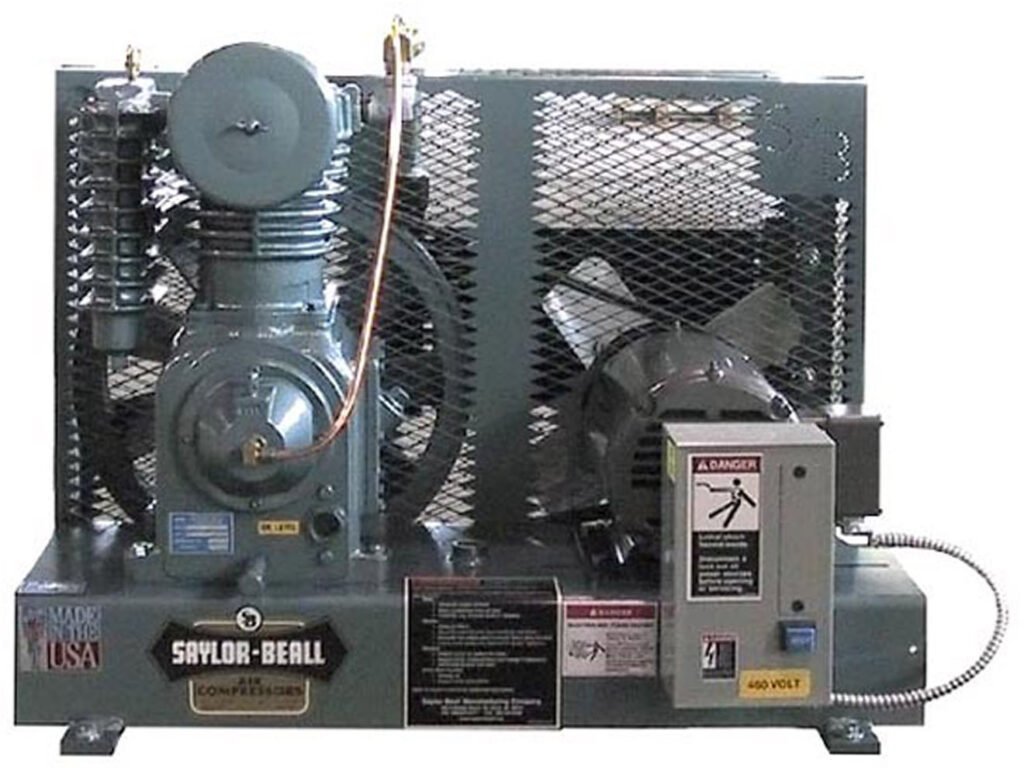

Saylor-Beall Base Mounted Two Stage Piston Air Compressor
1.5 to 30 HP splash lubricated compressor, 5.8 to 101.1 CFM at 175 PSI, 1 or 3-phase voltages
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Saylor-Beall Tank Mounted Two Stage Piston Air Compressor is manufactured with durable cast iron construction to withstand the stress from heat and use.
Overview and Features
Features
- 1.5 to 30 HP
- 5.8 to 101.1 CFM at 175 PSI
- Cast iron pump construction
- Finned cylinder head and
- Finned intercooler
- Centrifugal unloader, no load start
- Air pressure gauge
- Inline check valve
- 200 PSI safety valve
- Pressure switch
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 1.5 HP, 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP |
|---|---|
| Capacity | 5.8 CFM at 175 PSI, 7.5 CFM at 175 PSI, 11.1 CFM at 175 PSI, 17.3 CFM at 175 PSI, 18.5 CFM at 175 PSI, 26.2 CFM at 175 PSI, 34.4 CFM at 175 PSI, 38 CFM at 175 PSI, 51 CFM at 175 PSI, 61.2 CFM at 175 PSI, 76.1 CFM at 175 PSI, 89.6 CFM at 175 PSI, 101.1 CFM at 175 PSI |
| Voltage | 230/3/60, 460/3/60, 230/1/60 |
