Airtech USA

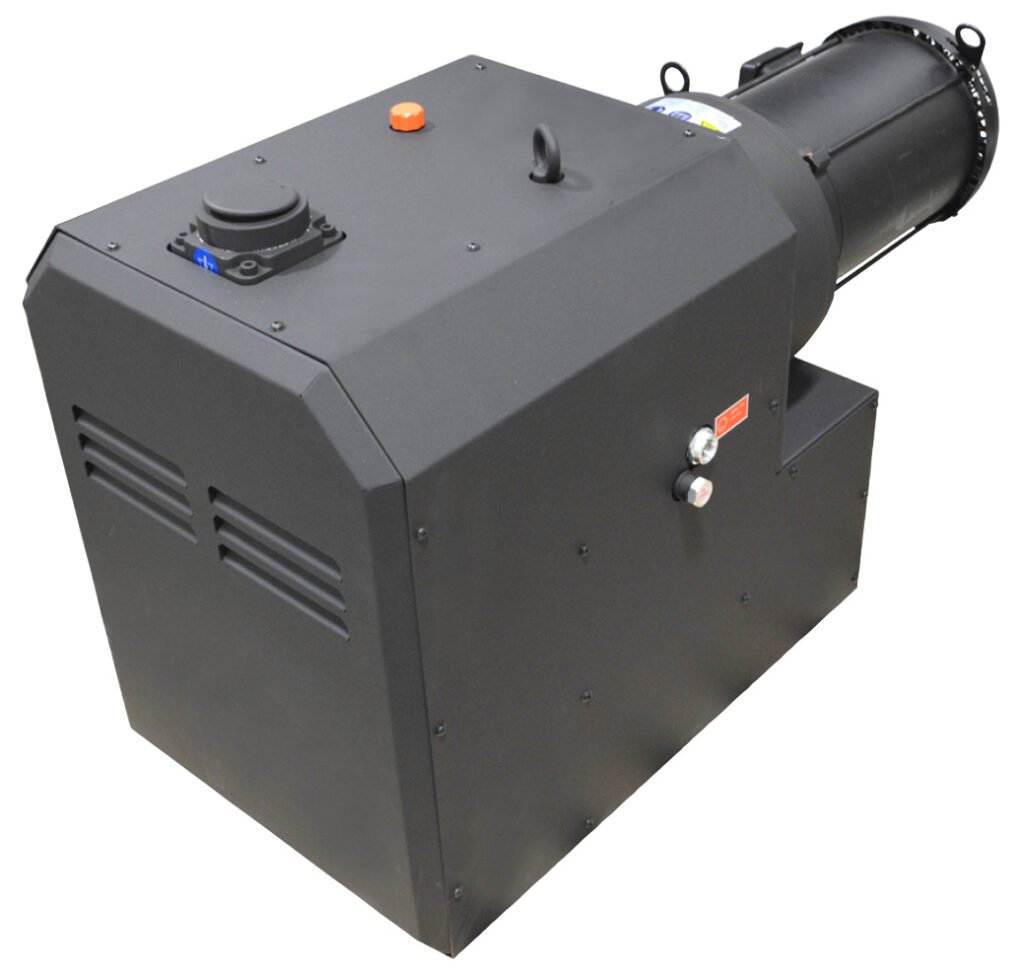

Airtech PCX Series Rotary Claw Pressure Pump
Air-cooled, direct driven rotary claw pressure pump with oilless, non-contacting pumping chamber. 40 to 353 CFM capacities
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Airtech PCX Series rotary claw pressure pump is a direct drive pump designed for positive displacement and features air cooling, oilless, and non-contacting rotors. These features, combined with quality construction, results in a pump that that is high in reliability and has a long service life.
The PCX Series’ claw shaped rotors inside the pump housing rotate in opposing directions, compressing the air and discharging through a silencer to the atmosphere. The two rotors are synchronized by oil lubricated gears to improve gear lifespan. The anti-suck back valve in the inlet flange prevents back flow into the pumping chamber.
Overview and Features
Features
- 5 to 40 HP options
- 40 to 353 CFM capacity
- 230/460/3/60 TEFC C-face motor
- Vibration isolators
- Acoustical enclosure
- Inlet silencers
- Pressure relief valve
- Initial charge of gear oil
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP, 40 HP |
|---|---|
| Capacity | 40 CFM, 70 CFM, 106 CFM, 166 CFM, 212 CFM, 272 CFM, 353 CFM |
