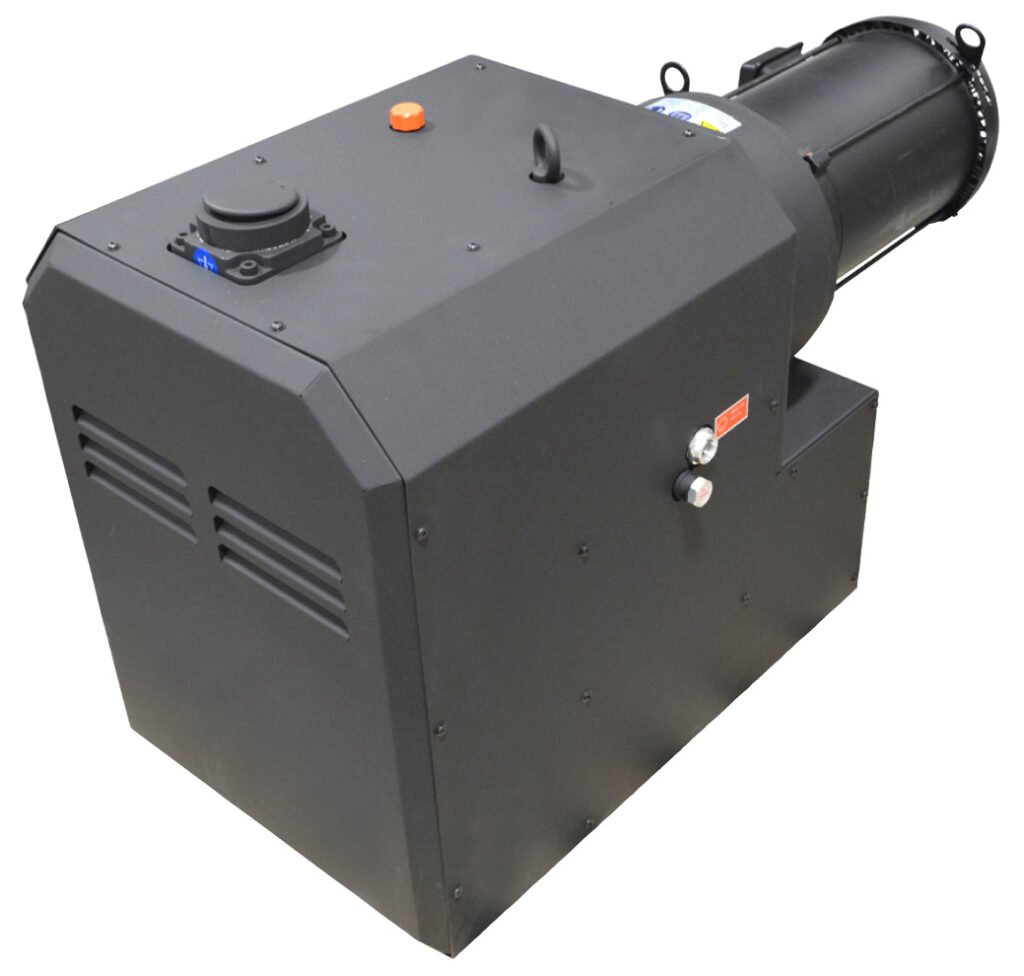

Airtech VCX Series Rotary Claw Vacuum Pump
Air-cooled, direct driven rotary claw vacuum pump with oilless, non-contacting pumping chamber. 40 to 353 CFM capacities
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Airtech VCX Series rotary claw vacuum pump is a direct drive pump that features air cooling, is oilless, and has non-contacting rotors. These features, combined with quality construction, results in a pump that that is high in reliability and has a long service life.
The VCX Series’ claw shaped rotors inside the pump housing rotate in opposing directions, compressing the air and discharging through a silencer to the atmosphere. The two rotors are synchronized by oil lubricated gears to improve gear lifespan. The anti-suck back valve in the inlet flange prevents back flow into the pumping chamber.
Overview and Features
Features
- 2 to 15 HP options
- 40 to 353 CFM capacity
- 230/460/3/60 TEFC C-face motor option available
- Vibration isolators
- Acoustical enclosure
- Inlet silencers
- Pressure relief valve
- Initial charge of gear oil
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP |
|---|---|
| Capacity | 40 CFM, 70 CFM, 106 CFM, 166 CFM, 212 CFM, 272 CFM, 353 CFM |
| Motor | No motor, 230/460/3/60 TEFC , C-Face motor |
