Leybold

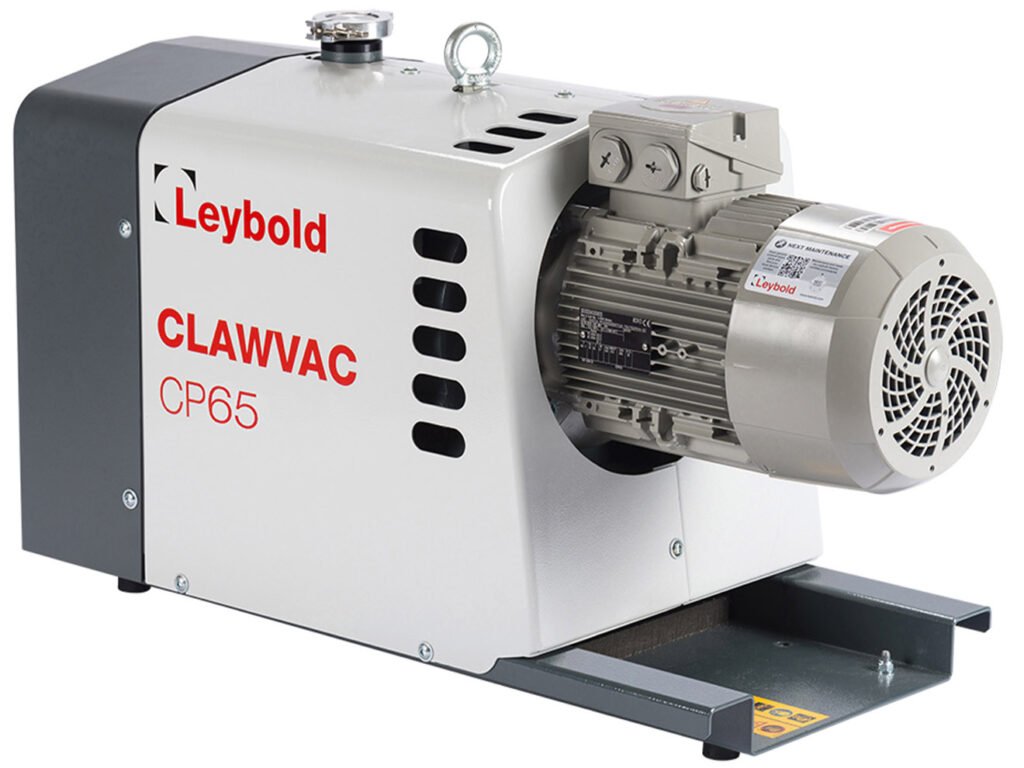

Leybold CLAWVAC Series Dry Claw Vacuum Pump
Oil-free, air cooled rotary claw vacuum pump with low power consumption
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Leybold CLAWVAC Series Vacuum Pump is a compact rough vacuum pump designed for demanding industrial applications. It is capable of handling particle and vapor-contaminated gases while also being cost-effective with up to 50% energy savings through the use of a variable speed drive.
Applications:
- Food Processing / Packaging
- Woodworking
- Material Transport and Holding
- Degassing
- Thermoforming
- Plastic Industry
- Environmental Engineering
Overview and Features
Features
- 46.5, 108.3, and 204.2 CFM pump speeds available
- 28.4 to 25.8 “HgV max vacuum level
- Variable speed drive compatible
- Corrosion-resistant stainless steel claws
- Coated pumping chamber
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Pump Speed | 46.5 CFM, 108.3 CFM, 204.2 CFM |
|---|---|
| Max Vacuum Level ("HgV) | 28.4 "HgV, 25.8 "HgV |
| Connection Size | 1.25" NPT inlet/outlet, 2" NPT inlet, 1.25" NPT outlet |
