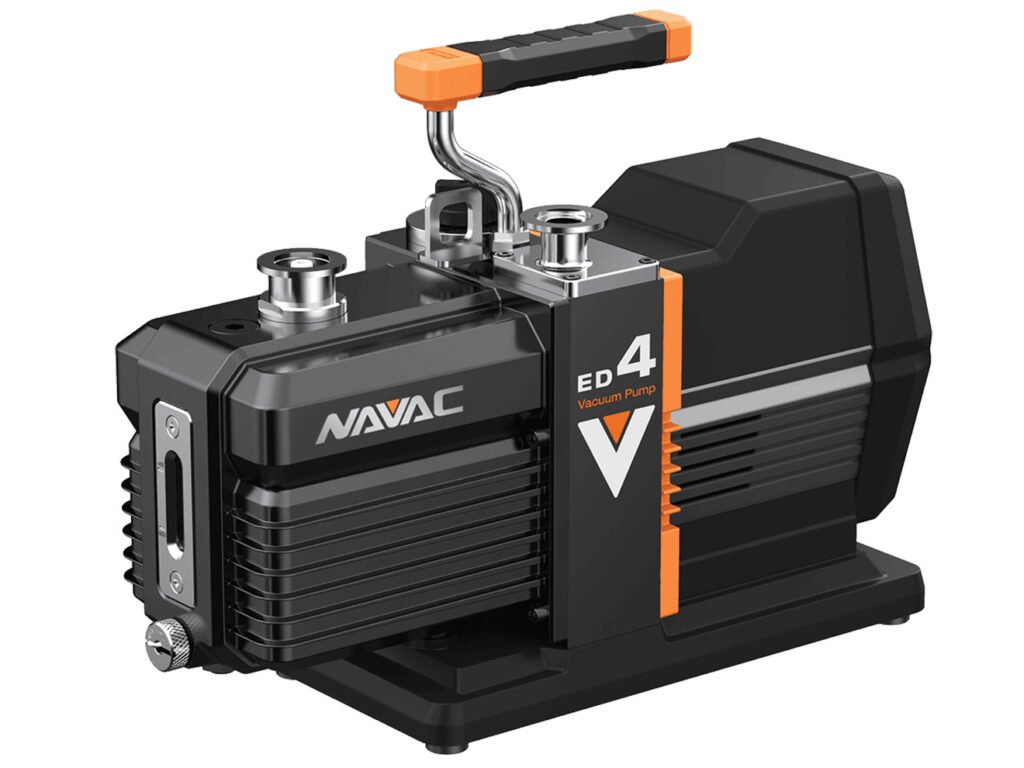

NAVAC EcoDrive Series Oil-Sealed Rotary Vane Vacuum Pump
Dual-stage vacuum pump with a permanent magnet motor, 2.4 to 18 CFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The NAVAC EcoDrive Series Oil-Sealed Rotary Vane Vacuum Pump is a dual-stage vacuum pump with a permanent magnet motor. The “Eco Mode” function means the pump runs at peak efficiency, optimizing energy consumption and noise. This technology is ideal for industrial applications due to its performance and reliability, ensuring long-term productivity.
Overview and Features
Features
- Pumping Speed:
- 2.4 to 18 CFM
- Ultimate Total Pressure without Gas Ballast: 6×10-3 Torr
- Ultimate Total Pressure with Gas Ballast: 1.5 Torr
- cUL Approved
- Two Shift Adjustable Gas Ballast Valve
- Anti-suck back design
- Forced oil circulation system
- KF25 Flange inlet/outlet connections
- 115/1/60 voltage
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Pumping Speed | 2.4 CFM, 4.7 CFM, 5.9 CFM, 9.4 CFM, 14 CFM, 18 CFM |
|---|
