Kellogg-American

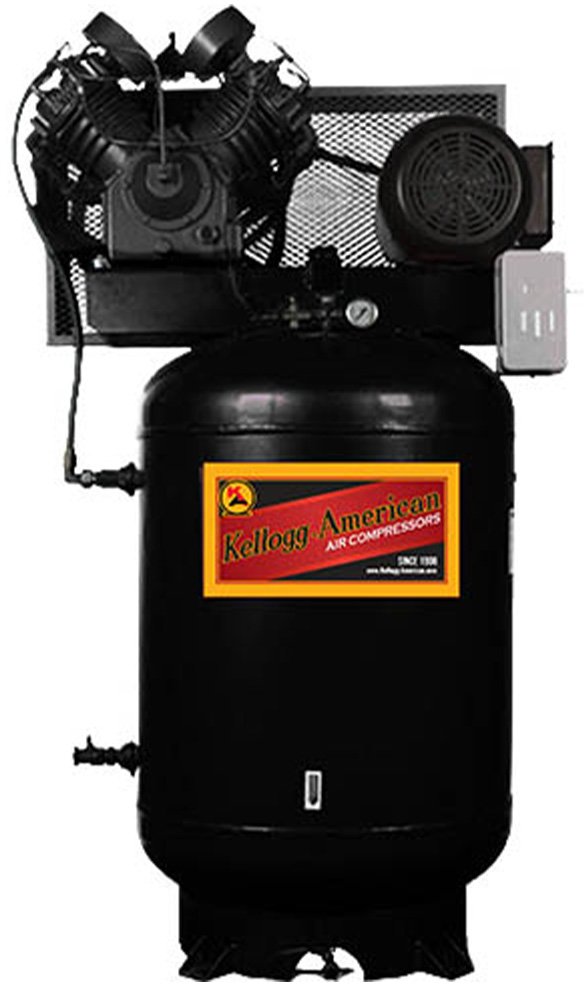

Kellogg-American Electric Two-Stage Piston Air Compressor
5 to 10 HP compressor, up to 44.9 CFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Kellogg-American Electric Two-Stage Piston Air Compressor is designed to withstand tough and demanding usage. It features heavy-duty cast iron pumps and offers both single-phase and three-phase motor options, along with standard ‘dual’ control and magnetic starters. All the components are carefully selected to ensure consistent, long-lasting industrial performance. These compressors are ideal for professional use, even in harsh environments, and provide ample amounts of air to get the job done effectively.
Overview and Features
Features
- Heavy duty, cast iron pumps
- TEFC motors
- 1 and 3 phase options available
- Fan cooled and enclosed
- IEC rated magnetic starter
- 80 or 120 gallon vertical ASME certified air receiver tanks
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Tank mount |
|---|---|
| Horsepower | 5 HP, 7.5 HP, 10 HP |
| Capacity | 21.6 CFM, 27.5 CFM, 34.2 CFM, 40.5 CFM, 44.9 CFM |
| Pressure | 200 PSI |
| Tank Size and Orientation | 80 gallon, vertical, 120 gallon, vertical |
| Voltage | 208-230/1/60, 208-230/460/3/60, 208-230/460/1/60 |
