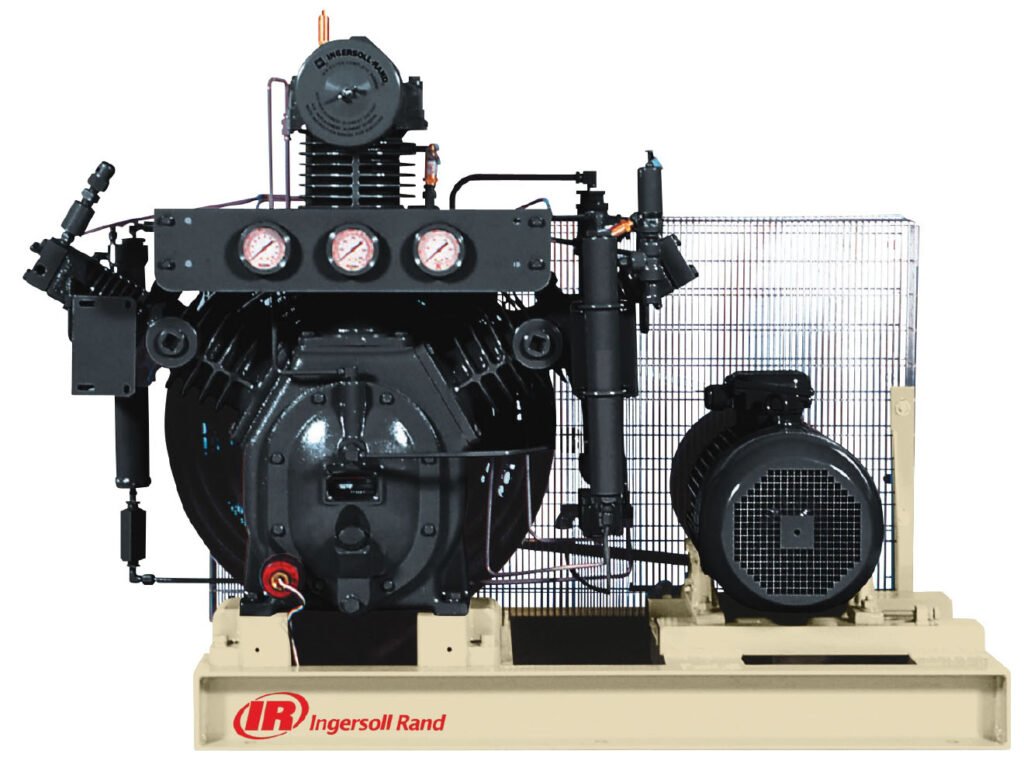

Ingersoll Rand High Pressure Piston Air Compressor
2 to 20 hp, base-mounted reciprocating piston pump delivers pressures up to 5000 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Ingersoll Rand High Pressure Piston Air Compressor utilizes base-mounted piston technology to deliver pressure up to 5000 PSI. It is commonly used for refueling stations, PBM, power plants, and engine starting. The pump is built with the same durable construction as all Ingersoll Rand two-stage reciprocating compressors, ensuring reliability, longevity, and simple upkeep.
Overview and Features
Features
- 2 to 20 HP models available
- 4.8 to 20.9 CFM
- Base mount
- NEMA 1 electrics
- ODP motor
- Standard inlet filter
- Heavy duty filter option available
- Low oil level switches
- Aircooled aftercooler
- Dual control (except 5 HP, 5.2 CFM model)
- Timed condensate
- Motor and starter options available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 2 HP, 5 HP, 10 HP, 15 HP, 20 HP |
|---|---|
| Capacity | 4.8 CFM, 5.2 CFM, 6.2 CFM, 21.6 CFM, 22.9 CFM, 13.2 CFM, 13.5 CFM, 17.5 CFM, 18.6 CFM, 19 CFM, 20.9 CFM, 30.8 CFM, 37.7 CFM |
| Pressure | 500 PSI, 800 PSI, 1000 PSI, 3000 PSI, 3500 PSI, 5000 PSI |
| Motor | None, 230/1/60, 200/3/60, 230/3/60, 460/3/60, 575/3/60, TEFC (1 Phase), TEFC (3 Phase) |
| Starter | None, NEMA 1 deluxe starter (mounted and wired), NEMA 4 deluxe starter (mounted and wired) |
| Heavy Duty Filter | None, Add heavy duty filter |
| HATS | None, NEMA 1, NEMA 4 |
| Priority Valve | None, Add priority valve |
