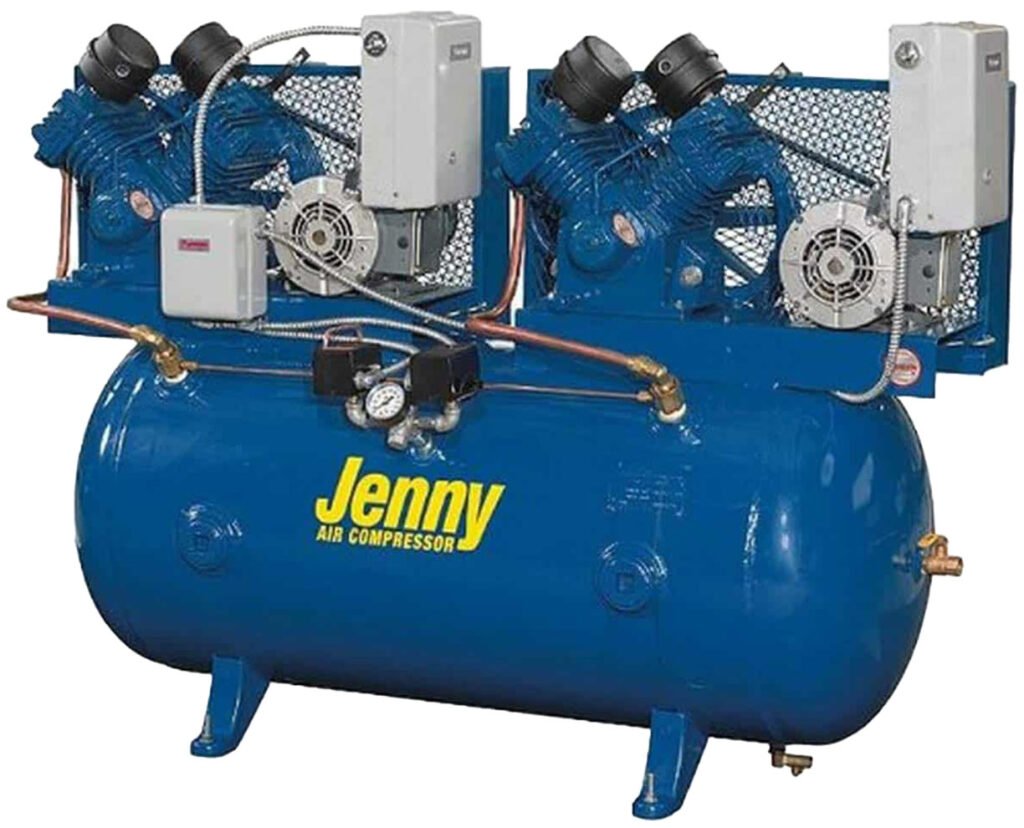

Jenny Two-Stage Stationary Piston Air Compressor
2 to 20 hp, heavy-duty two-stage cast iron compressor pump mounted to air receiver tank
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Jenny Two-Stage Stationary Piston Air Compressor is a heavy-duty cast iron compressor pump mounted to an ASME air receiver tank (vertical or horizontal options available). It is available in 2 to 25 HP (simplex) and 10 to 50 HP (duplex) configurations with capacities up to 166 CFM at 175 PSI. The splash-lubricated pump is belt-driven with a large flywheel for extra cooling and easier start-up. Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil for peak performance.
Overview and Features
Features
- Simplex options: 2 to 25 HP
- 7.1 to 83 CFM at 175 PSI
- Duplex options: 10 to 50 HP
- 30.4 to 166 CFM at 175 PSI
- Splash lubricated
- Belt driven with a large flywheel
- Directional air shroud
- Enclosed heavy-duty belt guard
- Large canister intake filter with replaceable filter elements
- Pressure relief safety valve
- Manual tank drain
- Tank gauge included
- 60, 80, 120, or 240 gallon air tanks available
- Auto start/stop control with pressure unloader set at 145 to 175 PSI
- Magnetic starter is included on all 5 HP and larger units
- Filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Simplex, Duplex |
|---|---|
| Horsepower | 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 10 HP (two 5 HP motors), 20 HP (two 10 HP motors), 50 HP (two 25 HP motors) |
| Capacity | 7.1 CFM, 10.7 CFM, 15.2 CFM, 17.5 CFM, 27.2 CFM, 35.2 CFM, 56.5 CFM, 72.2 CFM, 83 CFM, 30.4 CFM, 35 CFM, 70.4 CFM, 166 CFM |
| Pressure | 175 PSI |
| Pump RPM | 450 RPM, 660 RPM, 440 RPM, 900 RPM, 760 RPM, 610 RPM, 710 RPM, 520 RPM, 670 RPM, 780 RPM |
| Tank Size | 60 gallon, 80 gallon, 120 gallon, 240 gallon |
| Tank Orientation | Horizontal, Vertical |
| Voltage | 208/3/60, 230/3/60, 460/3/60, 575/3/60, 115/1/60, 230/1/60 |
