Jenny

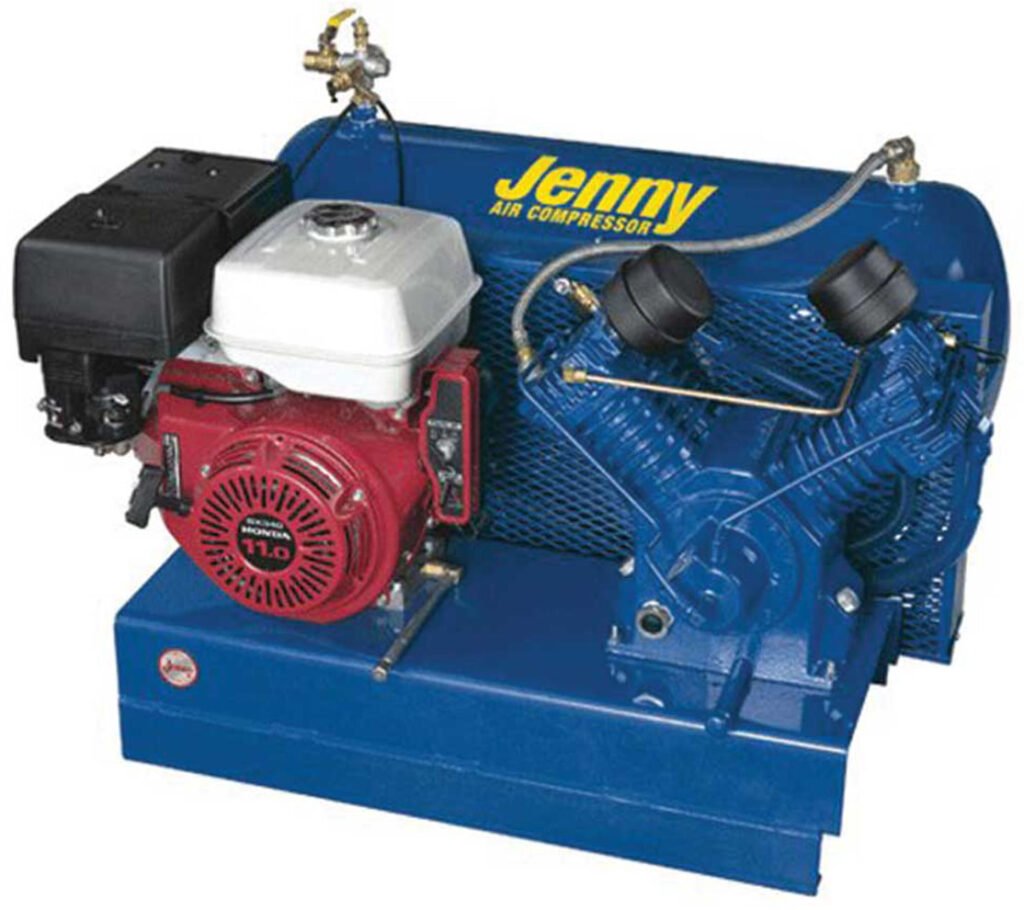

Jenny Two Stage Skid Mounted Portable Piston Air Compressor
Heavy-duty two stage cast iron compressor pump, capacity up to 34.7 CFM at 175 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Jenny Two Stage Skid Mounted Portable Piston Air Compressor is belt-driven with a large flywheel for additional cooling and simpler start-up. This compressor is the ideal solution for applications where a complete compressed air system is required but can also be moved by a forklift. A Honda GX or a Kohler gas powered engine powers this compressor and has a 30 gallon ASME air receiver tank. This unit includes a battery box as standard for the electric start (battery not included).
Overview and Features
Features
- Engine options:
- 11 or 13 HP Honda GX gas engine
- 18 HP Kohler gas engine
- 17.6 to 34.7 CFM at 175 PSI
- Splash lubricated
- Finned intercooler
- Belt driven with a large flywheel
- Pump filled with Jenny Ultimate Blue Synthetic Pump Oil
- 30 gallon ASME air receiver tank
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 11 HP (Honda GX), 13 HP (Honda GX), 18 HP (Kohler) |
|---|---|
| Capacity | 17.6 CFM, 20.8 CFM, 34.7 CFM |
| Pressure | 175 PSI |
| Tank Size | 30 gallon |
