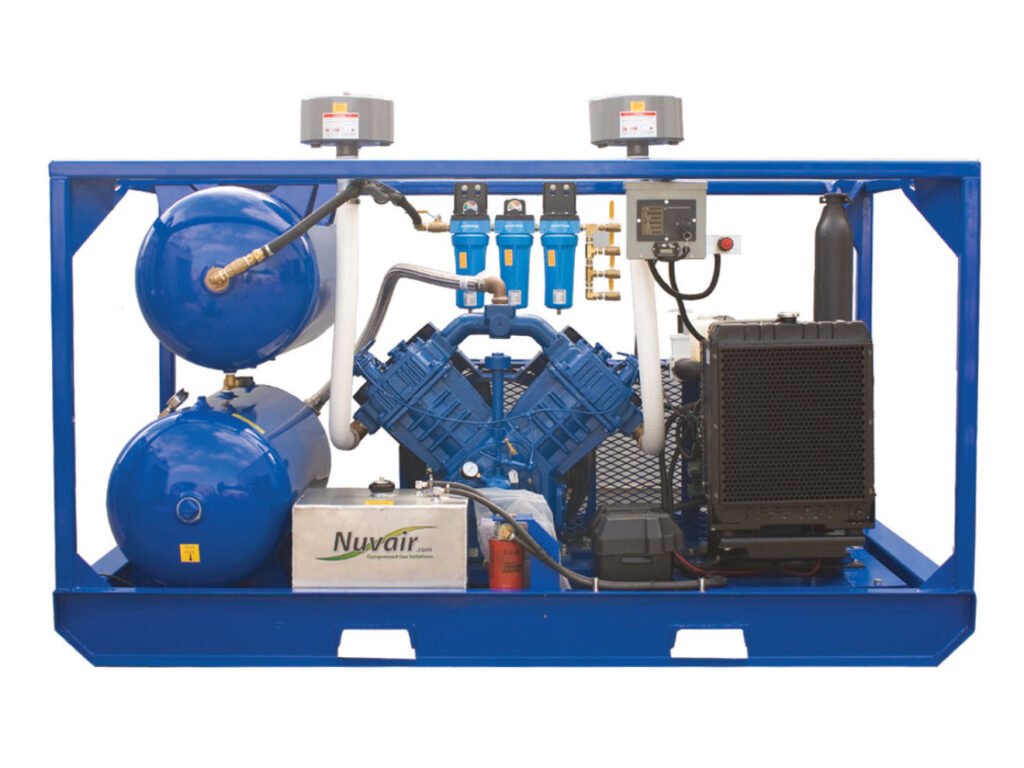

Nuvair Q-5120 Diesel Driven Two Stage Piston Air Compressor
Framed-in system with a 5120 compressor block and 35 HP Kubota diesel engine
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Nuvair Q-5120 diesel drive two stage piston air compressor provides 95 CFM of Grade D air for use in the production of low pressure industrial or breathing air. The standard package is built around the Quincy 5120 air compressor and includes a Kubota D1803-M engine, electric starter, Hankison filtration, and a Hayes PTO bearing block. The entire unit is framed in a heavy duty powder coated offshore frame with vibration isolated inner frame. Standard build includes a full instrument panel, fork lift slots, four point lifting eyes, belt guard, drip pan, and Grade D breathing air filtration.
Overview and Features
Features
- Quincy 5120 air compressor with head unloaders
- Air cooled Kubota D1803-M diesel engine
- Hankison filtration to 0.003 PPM oil vapor
- Hayes PTO bearing block
- Electric start
- 2 60 gallon ASME volume tanks
- 15 gallon fuel tank
- 200 PSI max operating pressure
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
