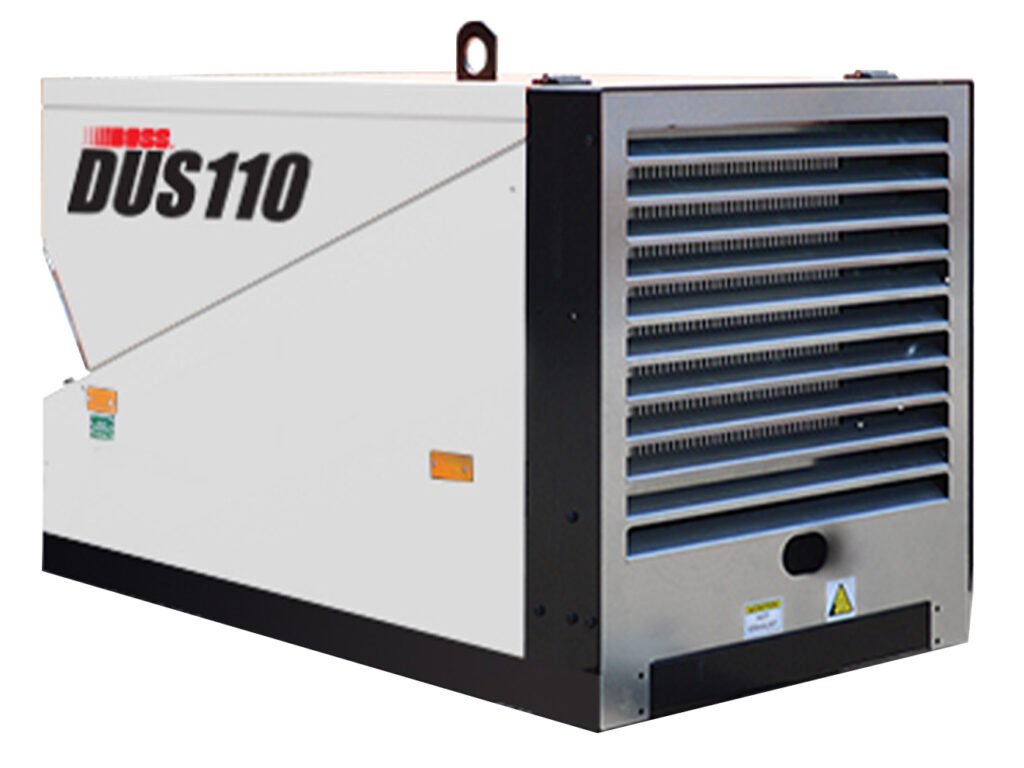

BOSS Industries FT4 DUS Series Diesel Driven Rotary Screw Air Compressor
Final tier 4 diesel motor driven compressor with optional capacity up to 210 CFM at 100 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The BOSS Industries FT4 DUS Series diesel driven rotary screw air compressor is a compact design that allows for truck bed installation and also had options for tow-behind configurations. With ability to provide capacities up to 210 CFM at 100 PSI, this compressor system can handle pneumatic tools and sandblasting. The 210 CFM model can also power vacuum systems.
The 185 CFM and 210 CFM models feature a full digital control system that allows for full system integration. This digital controller features all the typical safety shutdowns: engine high coolant temperature, engine oil pressure, high compressor pressure, and compressor discharge temperature. It also provides display of compressor temperature, discharge pressure, engine oil pressure, engine temperature, voltmeter, tachometer, fuel level, and a complete engine diagnostic tool.
Overview and Features
Features
- Three motor/horsepower options available:
- Kubota D1105 – 24 HP (110 CFM at 100 PSI)
- ISUZU 4LEXABWO1 – 49 HP (185 CFM at 100 PSI)
- Digital control system (ISUZU and John Deere models)
- Automatic 0 to 100% capacity control
- Automatic shutdown
- Two stage air filter
- Tow behind configurations available (Kubota and ISUZU models)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount, Tow behind |
|---|---|
| Horsepower | 24 HP (Kubota D1105 motor), 49 HP (Isuzu 4LEXABWO1 motor), 74 HP (John Deere JD4045 motor) |
| Capacity | 110 CFM, 185 CFM, 210 CFM |
| Pressure | 100 PSI |
